Double-sided Display

Ultra-thin dual-sided display · 6 source configurations

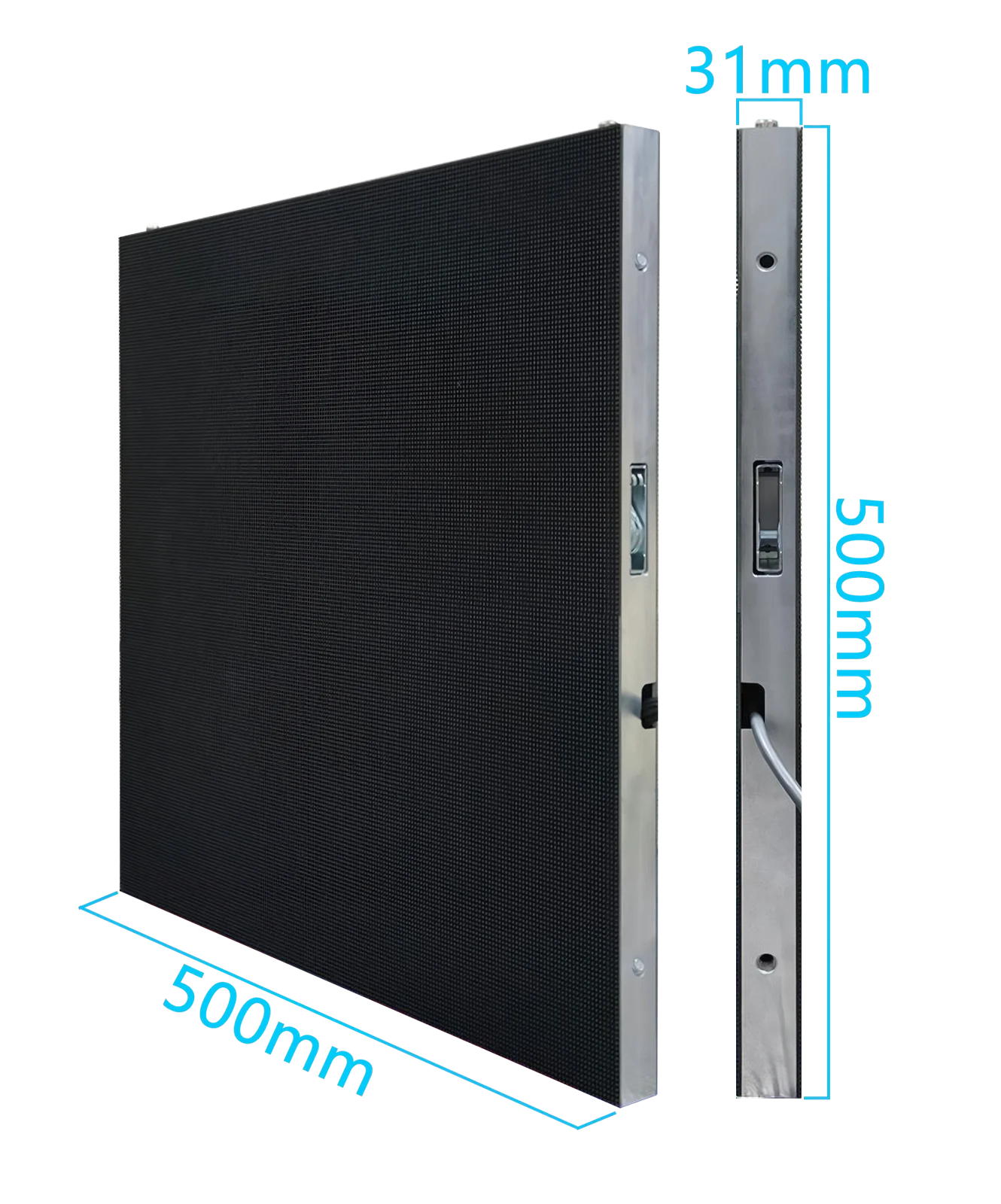

Cabinet 500 × 500 × 31 mm Source: Cabinet Size

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry.

01 / PIXEL PITCH

1.25mm / 1.5625mm …

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch NOW SHOWINGDouble-sided Display↗

TEXASSONIC / Indoor & Commercial

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Double-sided Display

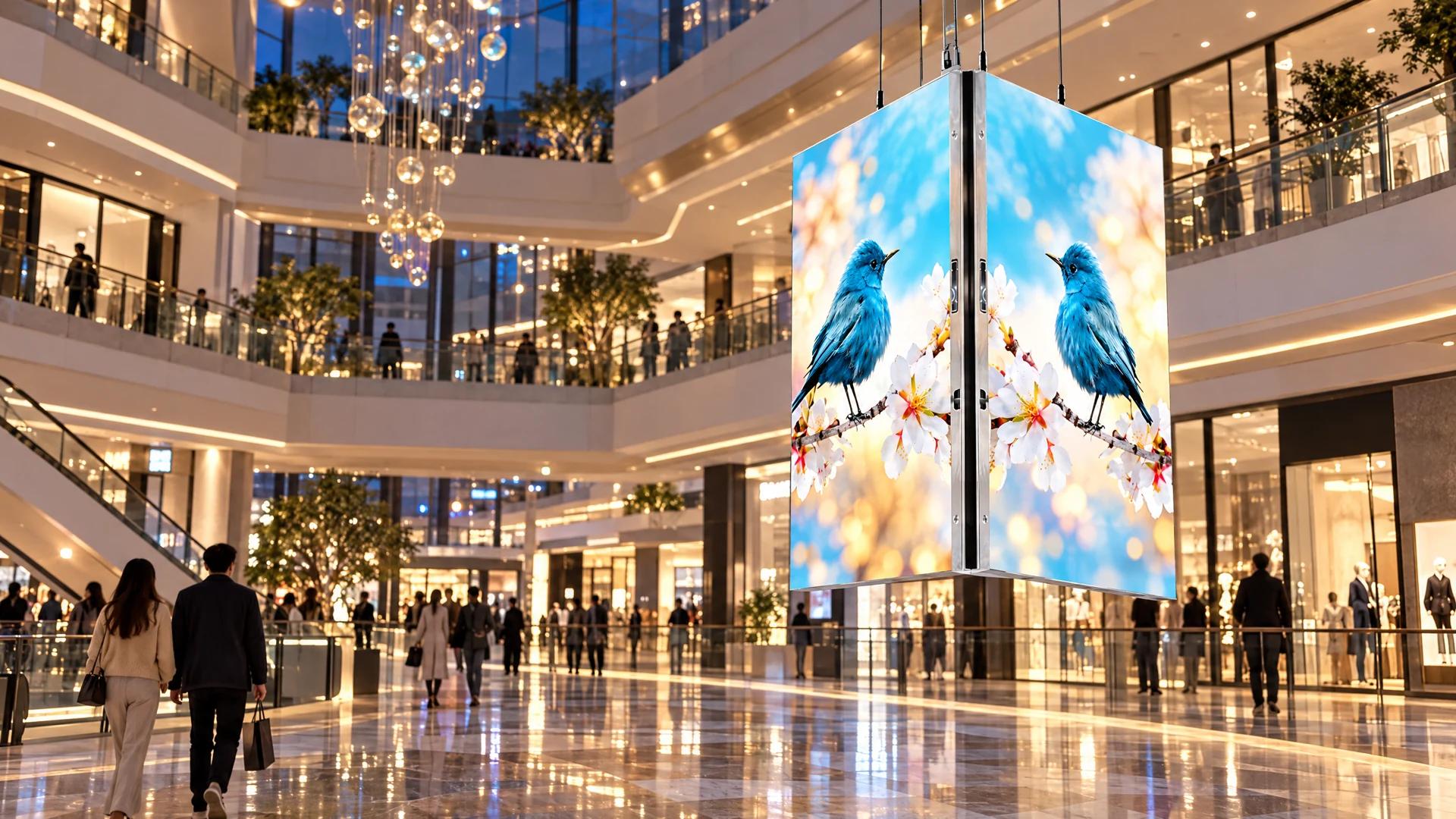

Double-sided atrium display

Independent or synchronized content on both sides. Front maintenance.

Show independent or synchronised content to visitor flows approaching from both directions.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

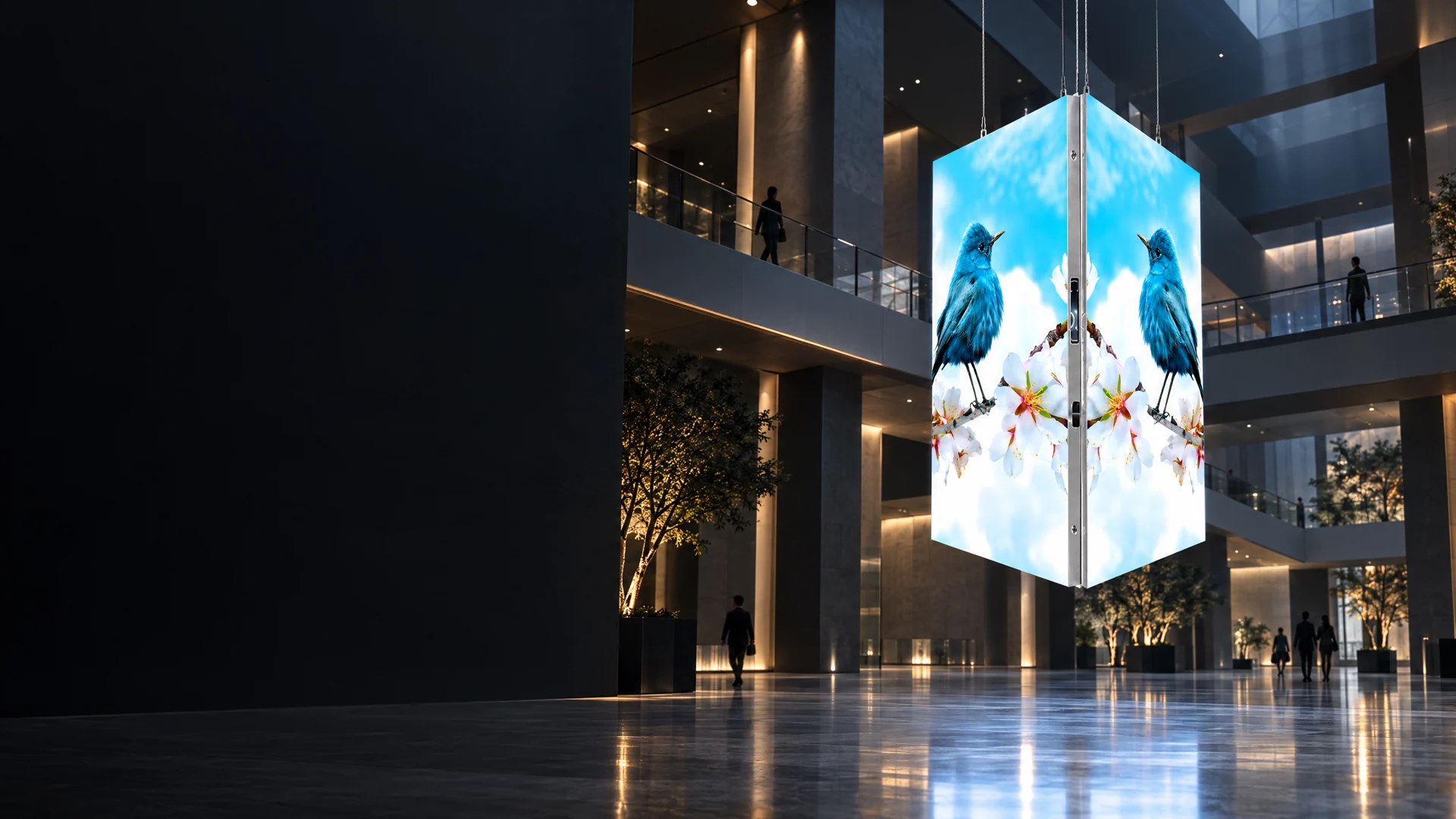

Double-sided Display — application background visual

PRODUCT × ENVIRONMENT

Double-sided atrium display

Show independent or synchronised content to visitor flows approaching from both directions.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Independent or synchronized content on both sides. Front maintenance.

Specifications are for reference. Final configuration is subject to project confirmation.

Viewing-angle and lifetime statements in the supplied file require confirmation; not used as performance promises.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (6)

CURRENT CONFIGURATION · P1.25

PIXEL PITCH: 1.25mm
BRIGHTNESS: 600
REFRESH: ≥ 3840Hz
SIZE: 250*250mm

Configuration

Double-sided Display — Technical specifications
Parameter	P1.25	P1.5625	P1.953	P2.604	P2.976	P3.91
Pixel Pitch	1.25mm	1.5625mm	1.953mm	2.604mm	2.976mm	3.91mm
Package Mode	SMD1010	SMD1010	SMD1515	SMD1515	SMD2020	SMD2020
Pixel Density(dots/m²)	640000	409600	262144	147456	112896	65536
Module Size	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm	250*250mm
Module Resolution	200*200	160*160	128*128	96*96	84*84	64*64
Module Weight	0.32kg	0.32kg	0.32kg	0.32kg	0.32kg	0.32kg
Scan Mode	1/50S	1/40S	1/32S	1/32S	1/28S	1/16S
Cabinet Size	50050031mm	50050031mm	50050031mm	50050031mm	50050031mm	50050031mm
Cabinet Weight	5.2kg	5.2kg	5.2kg	5.2kg	5.2kg	5.2kg
Cabinet Resolution	400*400	320*320	256*256	192*192	168*168	128*128
Viewing Distance	1.5-50m	1.5-50m	2-50m	3-50m	3-50m	4-50m
Frame Rate	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz
Refresh Rate	≥ 3840Hz	≥ 3840Hz	≥ 3840Hz	≥ 3840Hz	≥ 3840Hz	≥ 3840Hz
Brightness(cd/m²)	600	600	700	900	900	900
Avg Power	165W/ ㎡	165W/ ㎡	165W/ ㎡	165W/ ㎡	165W/ ㎡	165W/ ㎡
Max Power	500W/ ㎡	500W/ ㎡	500W/ ㎡	500W/ ㎡	500W/ ㎡	500W/ ㎡
Protection Level	IP43	IP43	IP43	IP43	IP43	IP43
Operating Temp.	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃
Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance
Input Voltage	AC110V-220V; ±10%	AC110V-220V; ±10%	AC110V-220V; ±10%	AC110V-220V; ±10%	AC110V-220V; ±10%	AC110V-220V; ±10%

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
