COB Fine Pitch

Indoor flip-chip COB display · 5 source configurations

Cabinet 600 × 337.5 × 35.5 mm Source: Cabinet size (W×H×D mm)

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry.

01 / PIXEL PITCH

0.78–1.875 mm

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel pitch (mm) NOW SHOWINGCOB Fine Pitch↗

TEXASSONIC / Indoor & Commercial

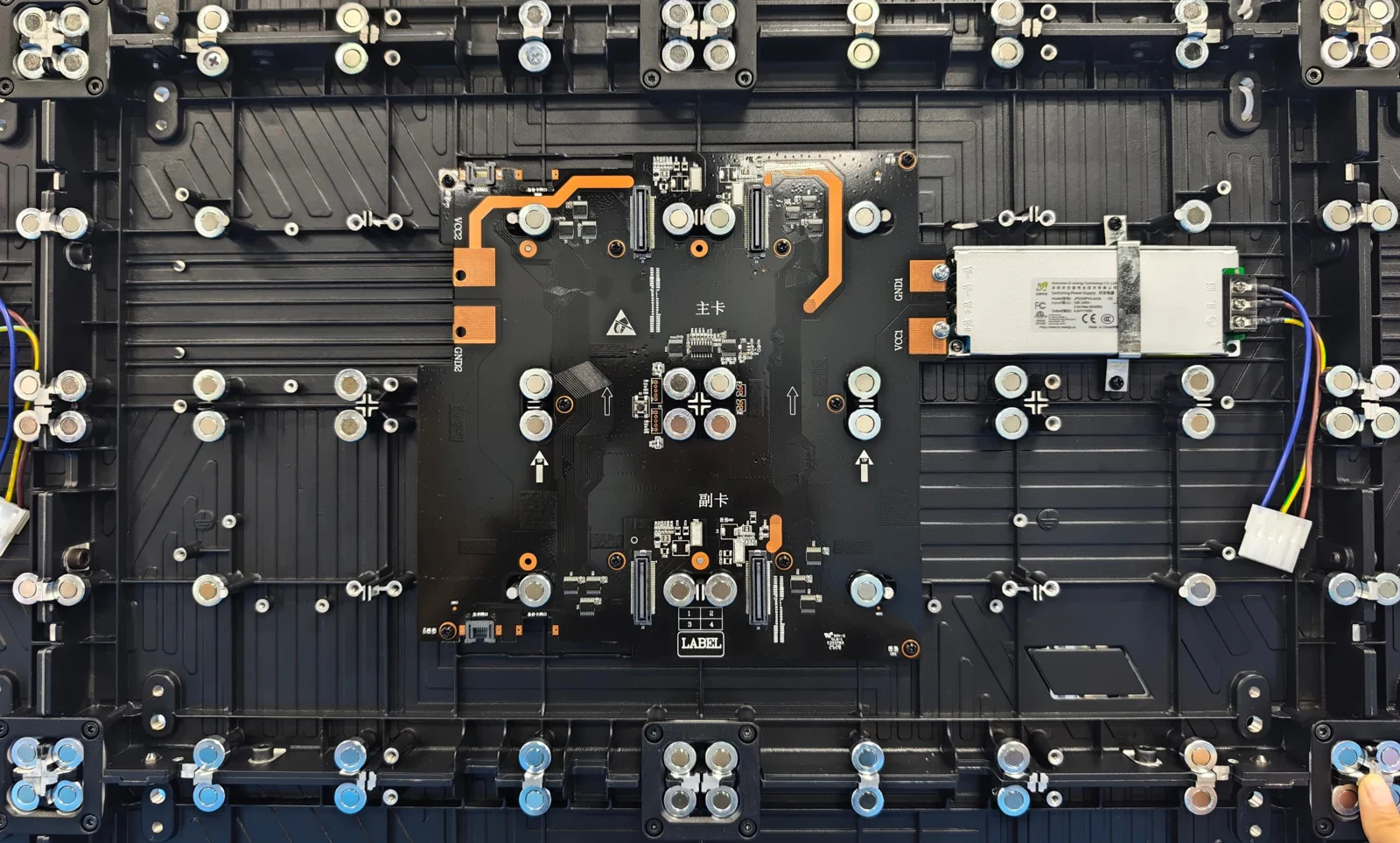

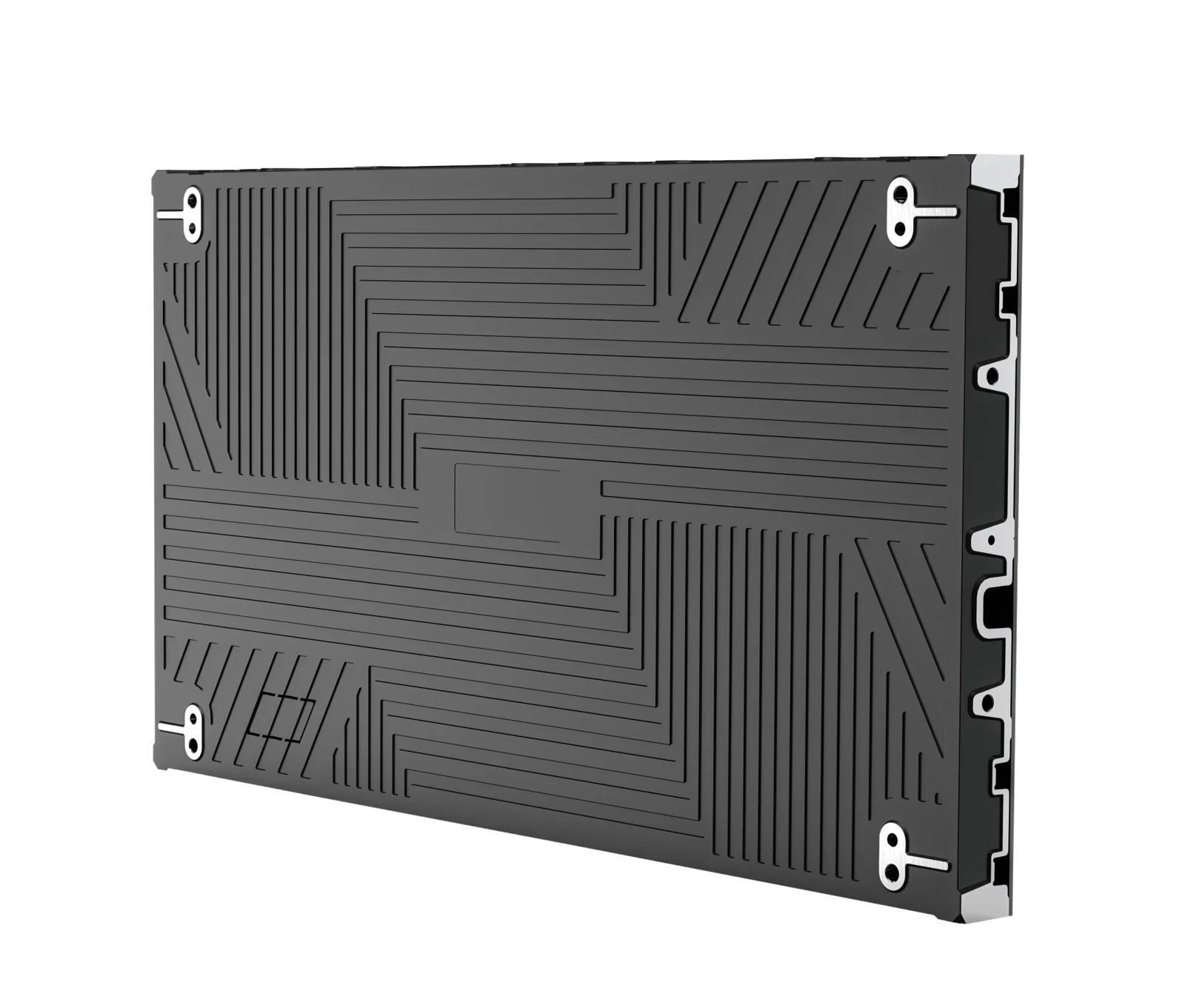

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

COB Fine Pitch

Fine-pitch indoor visual wall

Fine-pitch display with front service access and a HUB hardwired connection.

Fine-pitch displays suit indoor presentations, exhibitions and brand spaces with front-maintenance configurations.

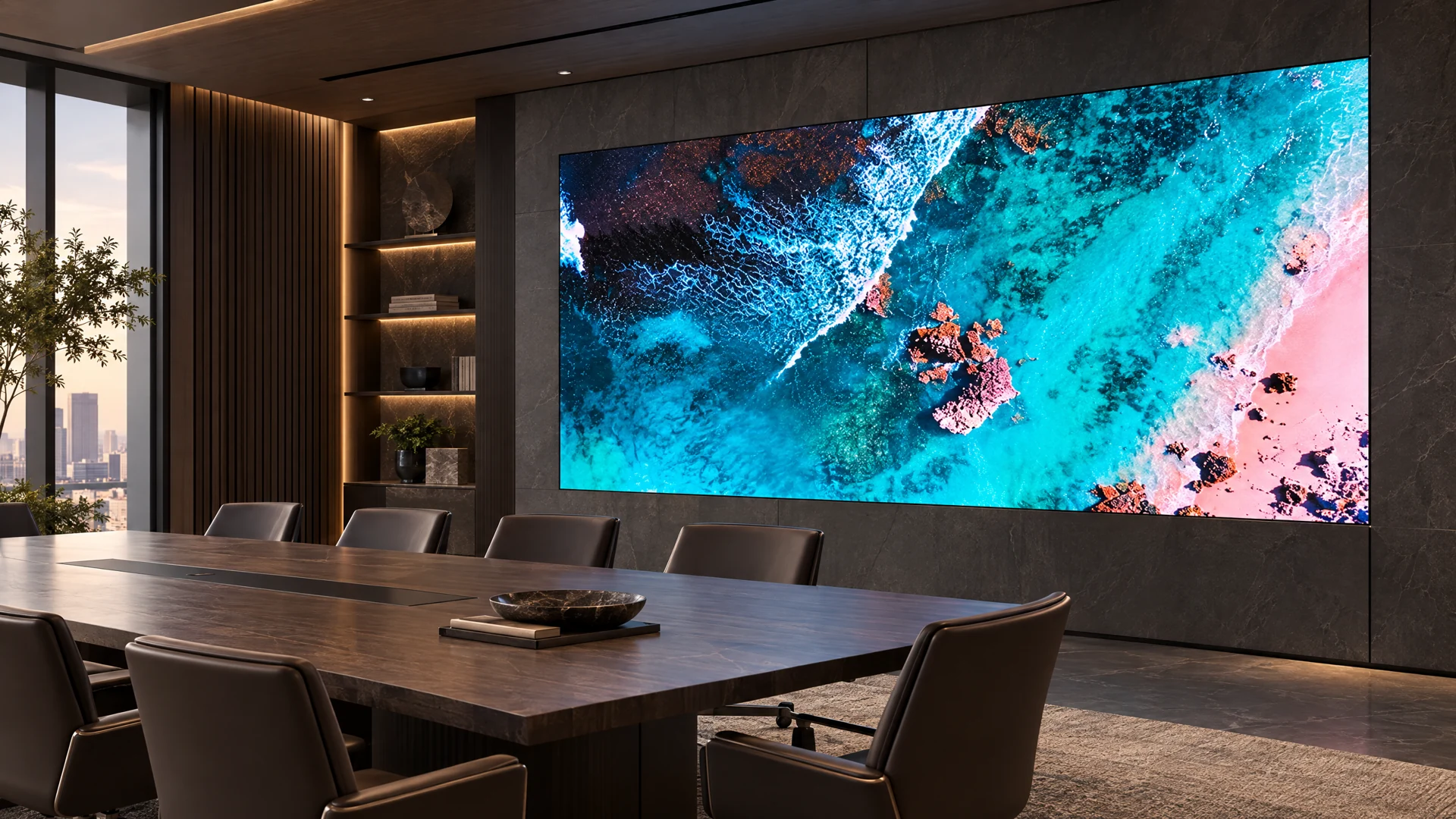

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

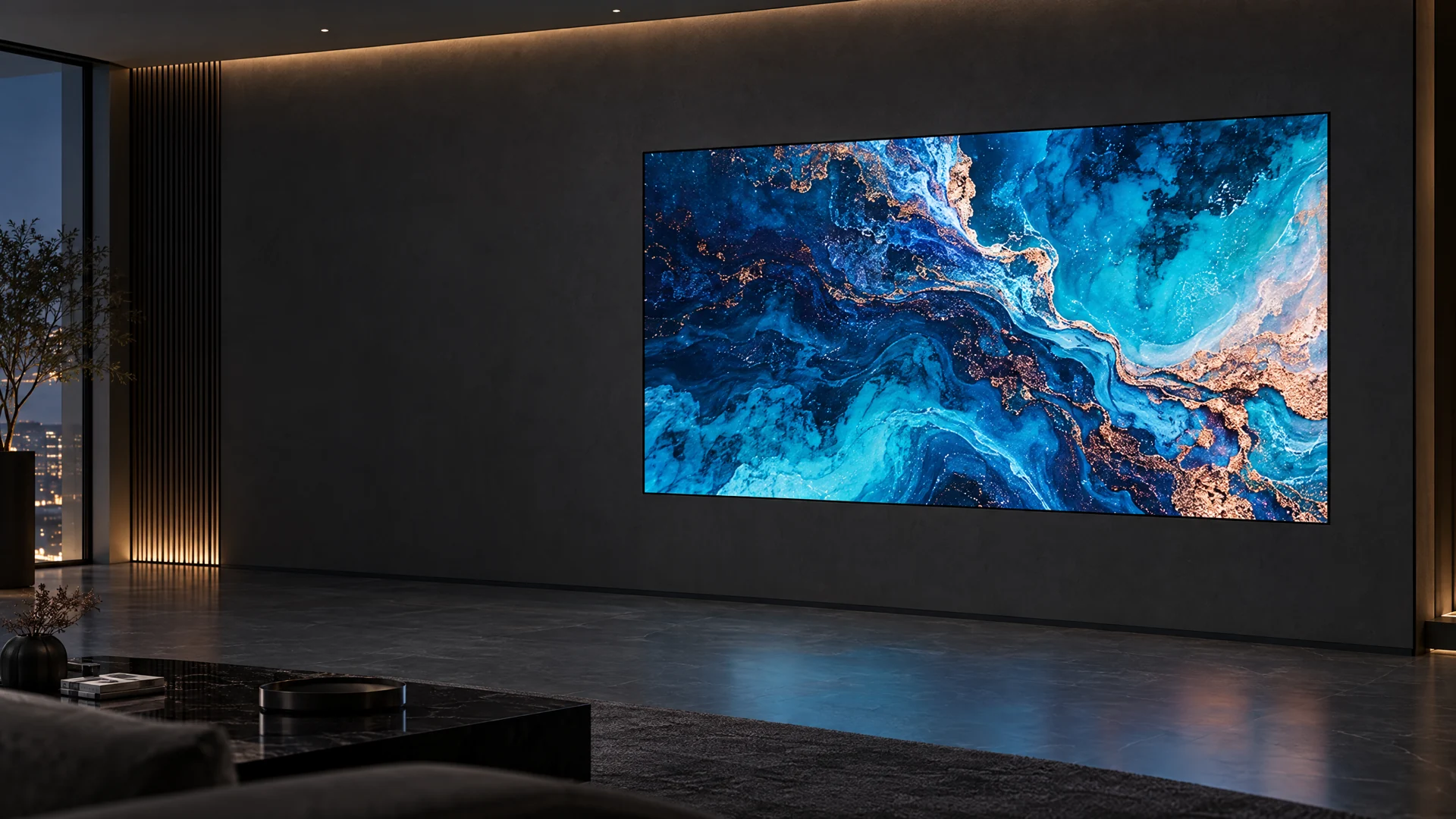

COB Fine Pitch — application background visual

PRODUCT × ENVIRONMENT

Fine-pitch indoor visual wall

Fine-pitch displays suit indoor presentations, exhibitions and brand spaces with front-maintenance configurations.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Fine-pitch display with front service access and a HUB hardwired connection.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (5)

CURRENT CONFIGURATION · P0.78

PIXEL PITCH: 0.78
BRIGHTNESS: 600
REFRESH: 3840Hz
SIZE: 150*168.75

Configuration

COB Fine Pitch — Technical specifications
Parameter	P0.78	P0.9375	P1.25	P1.5625	P1.875
Form factor	Flip chip COB	Flip chip COB	Flip chip COB	Flip chip COB	Flip chip COB
Pixel pitch (mm)	0.78	0.9375	1.25	1.5625	1.875
Module size (W×H mm)	150*168.75	150*168.75	300*168.75	300*168.75	300*168.75
Module resolution (W×H)	192*216	160*180	240*135	192*108	160*90
Number of scans	1/54	1/54	1/120	1/108	1/90
Circuit scheme	Common cathode	Common cathode	Common cathode	Common cathode	Common cathode
Cabinet resolution (W×H)	768*432	640*360	480*270	384*216	320*180
Cabinet size (W×H×D mm)	600337.535.5	600337.535.5	600337.535.5	600337.535.5	600337.535.5
Pixel density (dots/ ㎡ )	1,638,400	1,137,777	640,000	409,600	284,444
Box weight (Kg)	About 4	About 4	About 4	About 4	About 4
Connection mode	HUB hardwired	HUB hardwired	HUB hardwired	HUB hardwired	HUB hardwired
Installation/maintenance	Front and rear installation / front maintenance	Front and rear installation / front maintenance	Front and rear installation / front maintenance	Front and rear installation / front maintenance	Front and rear installation / front maintenance
Protection Rating (Front)	IP54	IP54	IP54	IP54	IP54
Brightness (cd/ ㎡ )	600	600	600	600	600
Refresh rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Color temperature range	3000K-15000K	3000K-15000K	3000K-15000K	3000K-15000K	3000K-15000K
Viewing angle (H/V)	175°	175°	175°	175°	175°
Contrast	20000:1	20000:1	20000:1	20000:1	20000:1
Operating voltage (AC V)	100-240V	100-240V	100-240V	100-240V	100-240V
Max power (W/ ㎡ )	About 375	About 375	About 350	About 350	About 325
Avg power (W/ ㎡ )	About 110	About 110	About 100	About 100	About 90
Gray scale (bit)	14	14	14	14	14
Operating temp/humidity	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH
Storage temp/humidity	-20°C~+60°C / 10%RH~90%RH	-20°C~+60°C / 10%RH~90%RH	-20°C~+60°C / 10%RH~90%RH	-20°C~+60°C / 10%RH~90%RH	-20°C~+60°C / 10%RH~90%RH

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
