Grille Display

Indoor and outdoor transparent grille display · 8 source configurations

Transparency 70% · size not listed Source: Tranparency

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. Overall size and depth are illustrative, proportioned from the product photos.

01 / PIXEL PITCH

2.6-5.2 / 3.91-7.82 …

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch (mm) NOW SHOWINGGrille Display↗

TEXASSONIC / Creative & Transparent

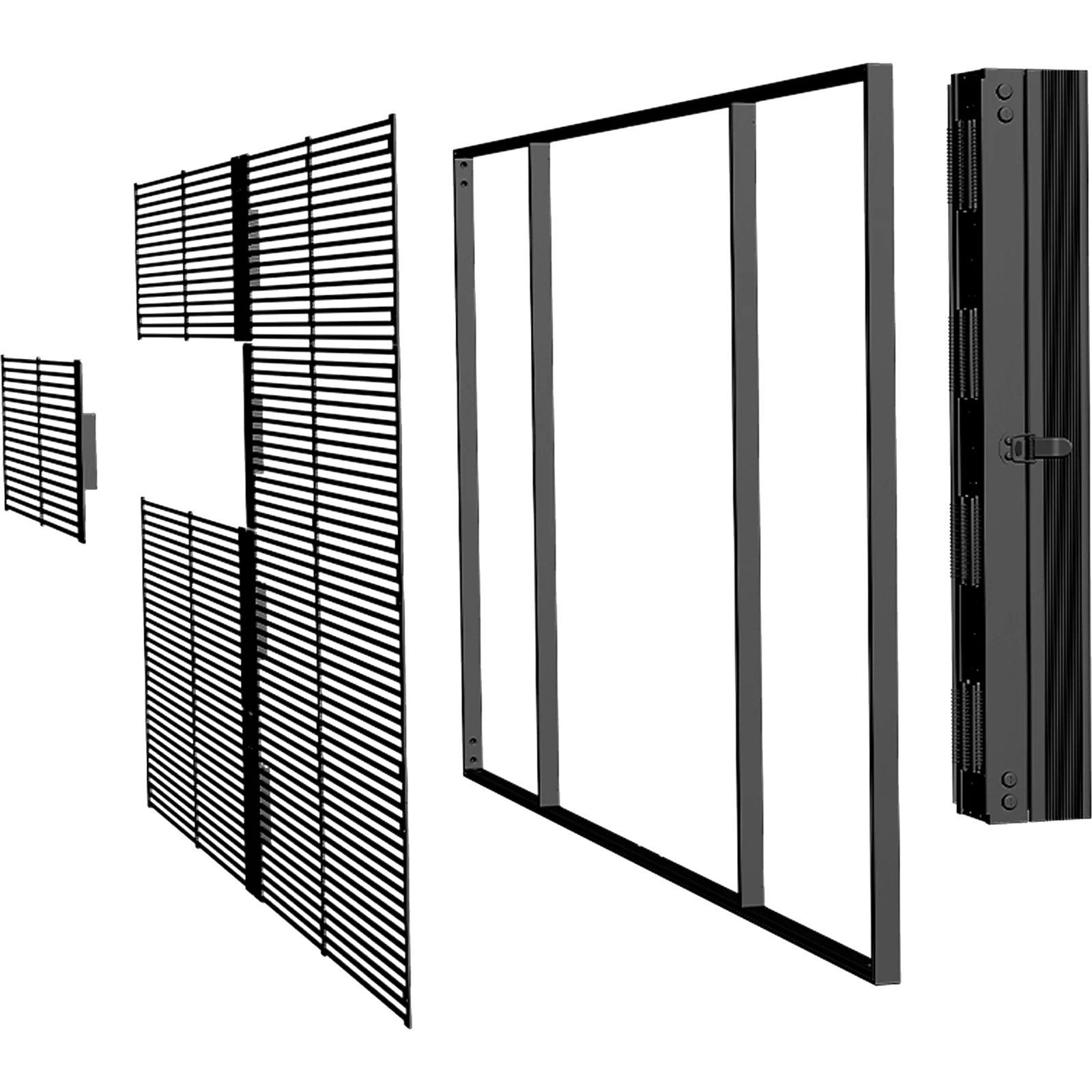

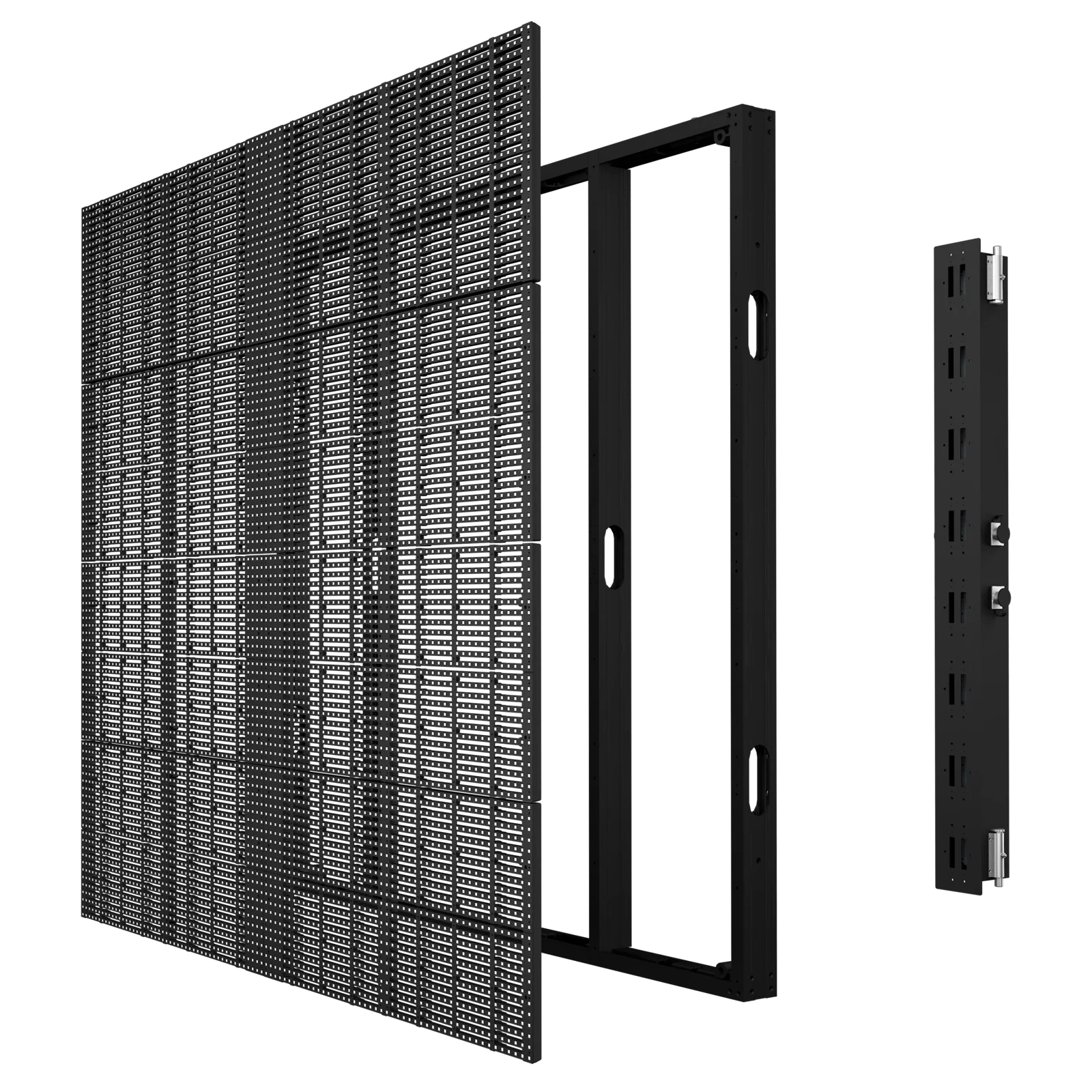

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Grille Display

Grille media facade

Open grille construction for architectural display applications.

An open grille structure brings light and digital content into the architectural facade.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

Grille Display — application background visual

PRODUCT × ENVIRONMENT

Grille media facade

An open grille structure brings light and digital content into the architectural facade.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Open grille construction for architectural display applications.

Specifications are for reference. Final configuration is subject to project confirmation.

Cabinet depth differs between the source table and description; confirm your required configuration.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (8)

CURRENT CONFIGURATION · Indoor P2.6–5.2

PIXEL PITCH: 2.6-5.2
BRIGHTNESS: 1500/4500
REFRESH: 3840
PROTECTION: IP45

Configuration

Grille Display — Technical specifications
Parameter	Indoor P2.6–5.2	Indoor P3.91–7.82	Indoor PH7.82–7.82	Indoor P10.4–10.4	Outdoor P3.91–7.82	Outdoor P7.82–7.82	Outdoor P5.2–10.4	Outdoor P10.4–10.4
Pixel Pitch (mm)	2.6-5.2	3.91-7.82	7.82-7.82	10.4-10.4	3.91-7.82	7.82-7.82	5.2-10.4	10.4-10.4
Lamp Bead Model	SMD1515	SMD1921	SMD1921	SMD3535	SMD1921	SMD1921	SMD1921	SMD2727
Pixel Density (dots/m²)	73728	32768	16384	9612	32768	16384	18432	9612
Tranparency	70%	80%	85%	90%	75%	82%	80%	88%
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840	3840	3840
Weight (kg/m²)	7.5	7.5	7.5	7.5	15	15	15	15
Viewing Angle (H×V)	160°	160°	160°	160°	160°	160°	160°	160°
Avg Power(w/m²)	260	260	260	260	300	300	300	300
Max Power (w/m²)	600	600	600	600	800	800	800	800
Brightness(cd/m²)	1500/4500	1500/4500	1500/5000	1500/5000	4500	5000	4500	5000
Power Supply	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V
Scan Number	1/11S	1/8S	1/4S	1/4S	1/6S	1/4S	1/4S	1/2S
IP Rating	IP45	IP45	IP45	IP45	IP65	IP65	IP65	IP65
Operation Temperature	-22℃-55℃	-22℃-55℃	-22℃-55℃	-22℃-55℃	-22℃-55℃	-22℃-55℃	-22℃-55℃	-22℃-55℃

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
