Indoor SMD

Indoor fixed LED display · 6 source configurations

Cabinet 640 × 480 × 60 mm Source: Cabinet Size

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry.

01 / PIXEL PITCH

1.25–3.076 mm

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch (mm) NOW SHOWINGIndoor SMD↗

TEXASSONIC / Indoor & Commercial

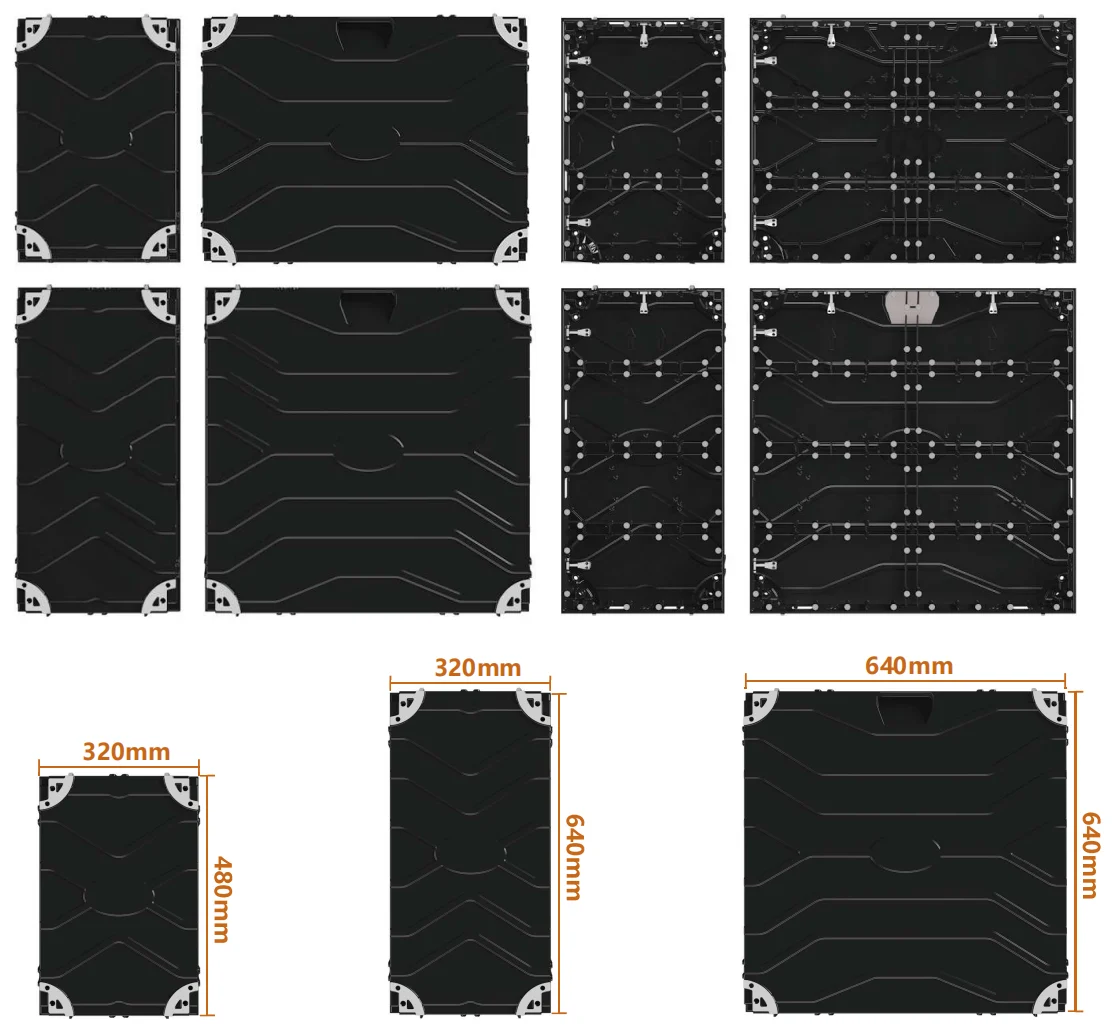

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Indoor SMD

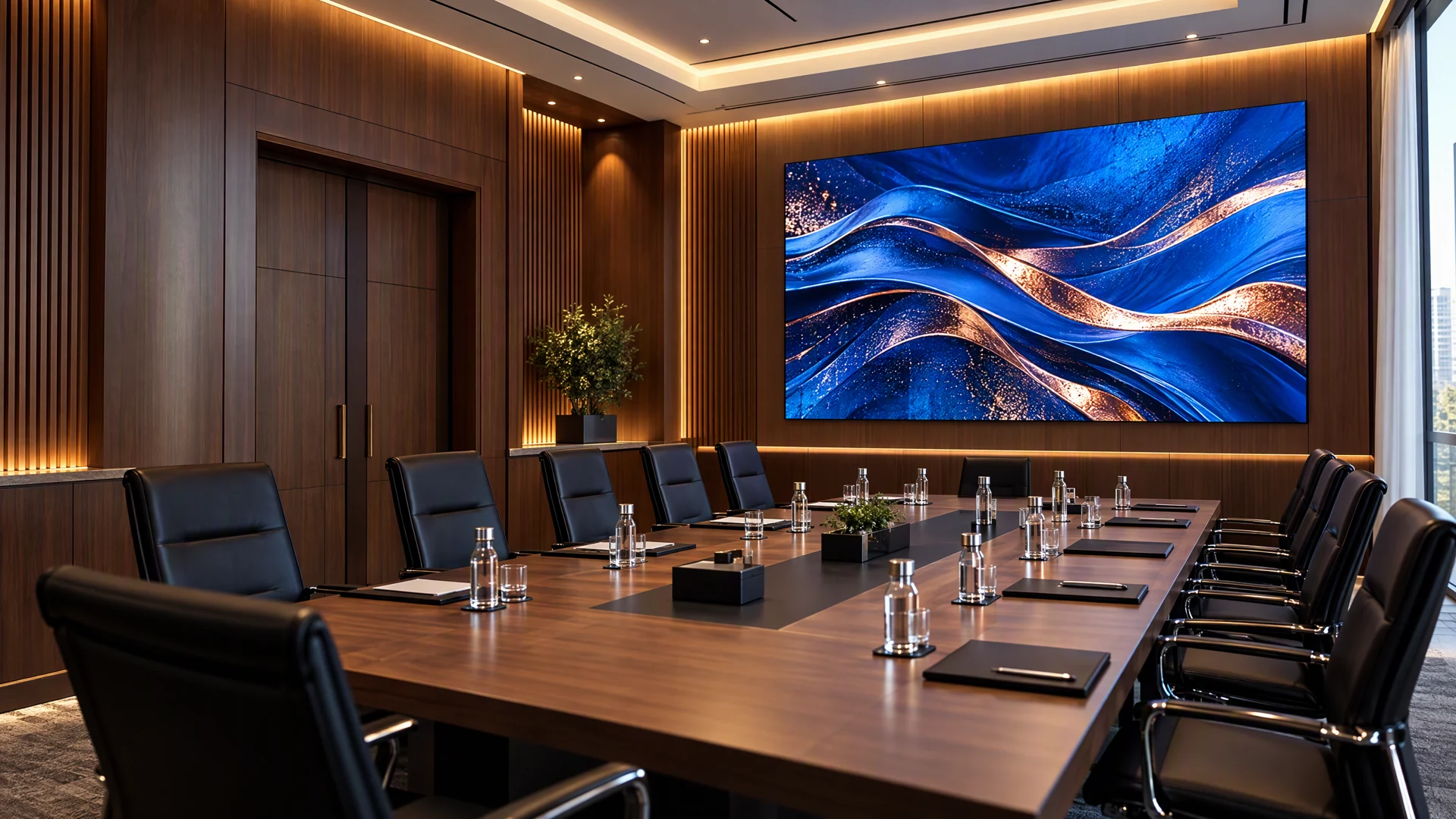

Indoor presentations and events

Die-cast aluminium cabinet and front-access maintenance.

A modular indoor display wall brings presentations, events and brand content into focus.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 03

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

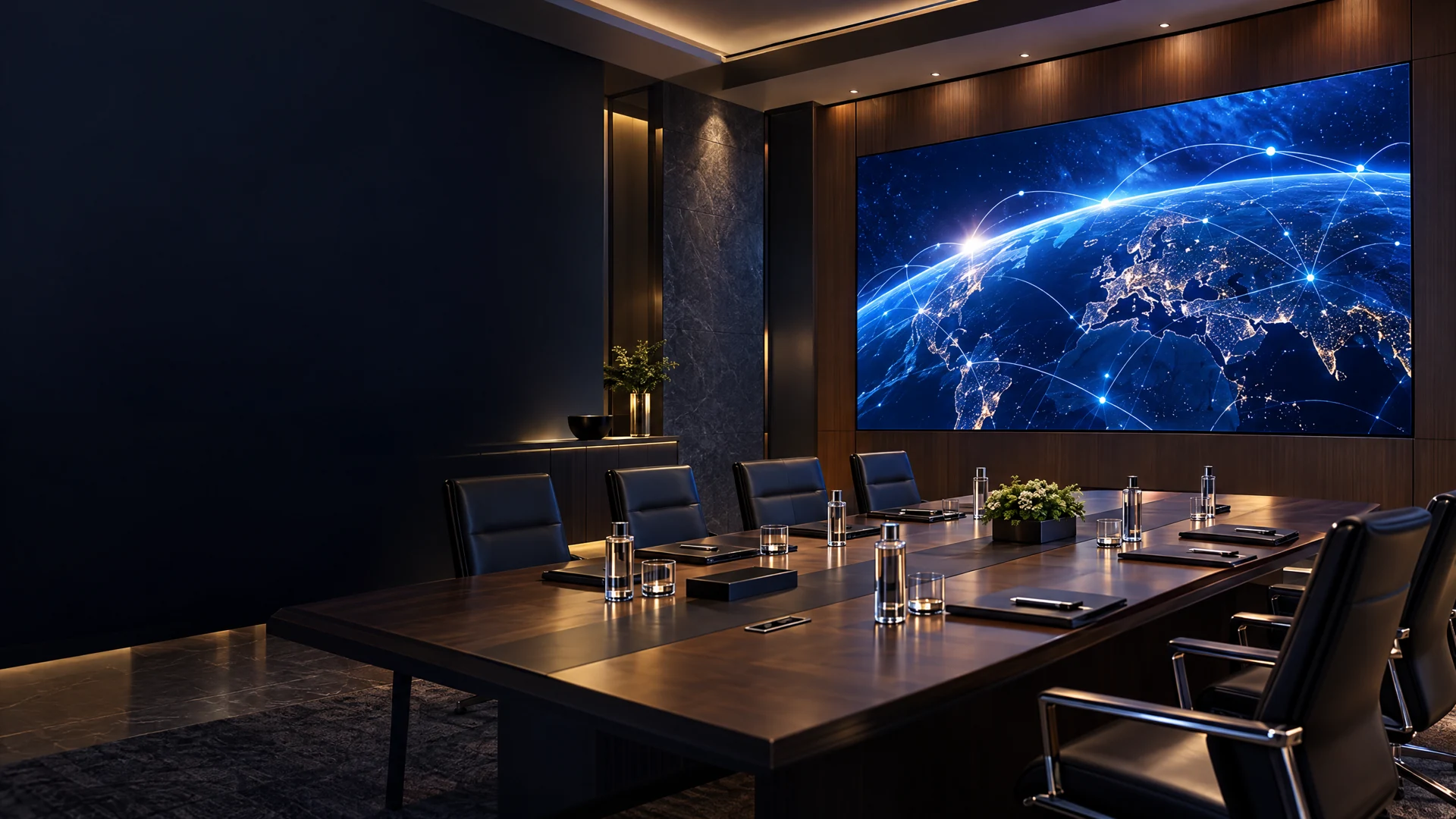

Indoor SMD — application background visual

PRODUCT × ENVIRONMENT

Indoor presentations and events

A modular indoor display wall brings presentations, events and brand content into focus.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Die-cast aluminium cabinet and front-access maintenance.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (6)

CURRENT CONFIGURATION · P1.25

PIXEL PITCH: 1.25
BRIGHTNESS: 600
REFRESH: 3840
SIZE: 640×480×60

Configuration

Indoor SMD — Technical specifications
Parameter	P1.25	P1.538	P1.86	P2	P2.5	P3.076
Pixel Pitch (mm)	1.25	1.538	1.86	2.0	2.5	3.076
LED Lamp	SMD1010	SMD1010	SMD1515	SMD1515	SMD2121	SMD2121
Pixel Density (dot/m²)	640,000	422,753	289,050	250,000	160,000	105,688
Cabinet Size	640×480×60	640×480×60	640×480×60	640×480×60	640×480×60	640×480×60
Cabinet Resolution	512×384	416×312	344×258	320×240	256×192	208×156
Module Size (mm)	320×160	320×160	320×160	320×160	320×160	320×160
Module Resolution	256×128	208×104	172×86	160×80	128×64	104×52
Cabinet Material	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum	Die-cast aluminum
Cabinet Weight (kg)	7.8	7.8	7.8	7.8	7.8	7.8
Scan Mode	1/64	1/52	1/43	1/40	1/32	1/26
Brightness (cd/m²)	600	600	600	600	600	600
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840
Viewing angle (H/V)	160°	160°	160°	160°	160°	160°
Contrast Ratio	10,000:1	10,000:1	10,000:1	10,000:1	10,000:1	10,000:1
Maintenance Method	Front-access maintenance (front installation / front maintenance)	Front-access maintenance (front installation / front maintenance)	Front-access maintenance (front installation / front maintenance)	Front-access maintenance (front installation / front maintenance)	Front-access maintenance (front installation / front maintenance)	Front-access maintenance (front installation / front maintenance)
Protection Rating	IP43	IP43	IP43	IP43	IP43	IP43
Best Viewing Distance (m)	1.25~10	2~20	2~10	2~10	2.5~10	3~15
Max power (W/ ㎡ )	650	650	650	650	650	650
Avg power (W/ ㎡ )	240	240	240	240	240	240
Working Voltage	AC110-240V	AC110-240V	AC110-240V	AC110-240V	AC110-240V	AC110-240V
Operating temp/humidity	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH	-10°C~+60°C / 10%RH~90%RH

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
