Flexible Rental

LOADING 3D0/1

TX-FLEX-RENTAL / Rental & Stage

Flexible Rental

Curved rental LED display · 4 source configurations

3 cabinets 500 × 500 × 86 mm in an arc Source: Cabinet Size(mm)

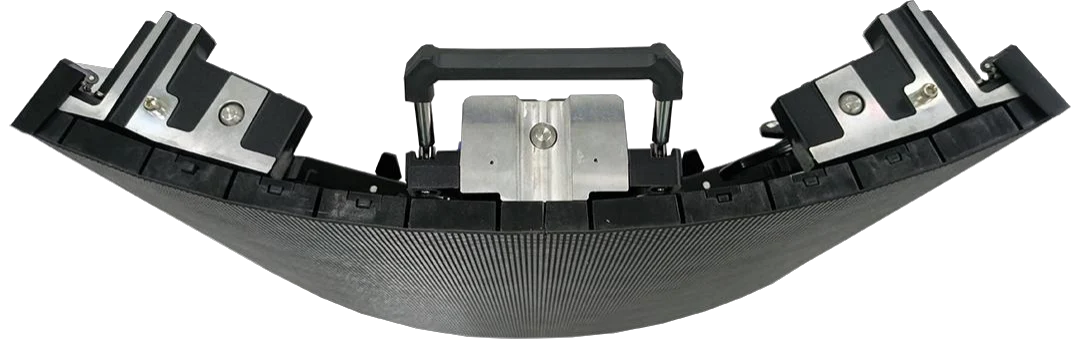

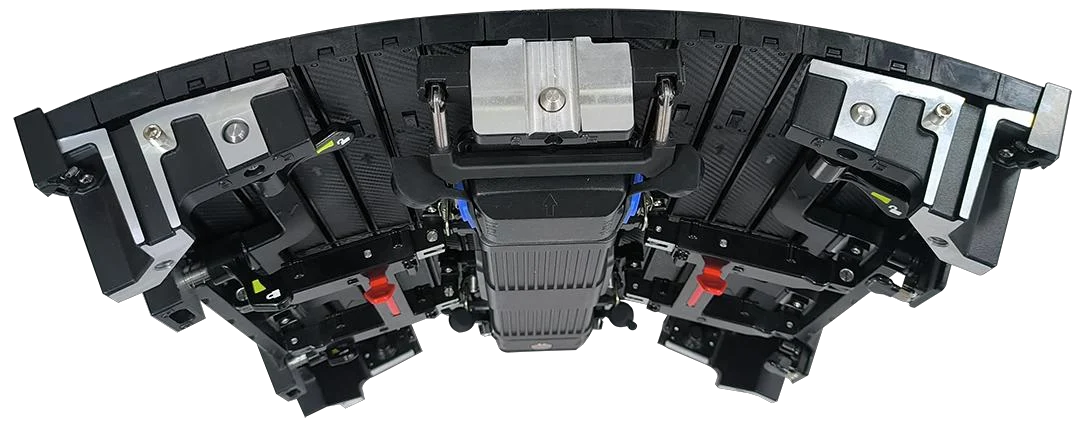

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. The arc angle is illustrative.

01 / PIXEL PITCH

1.953–3.91 mm

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch(mm) NOW SHOWINGFlexible Rental↗

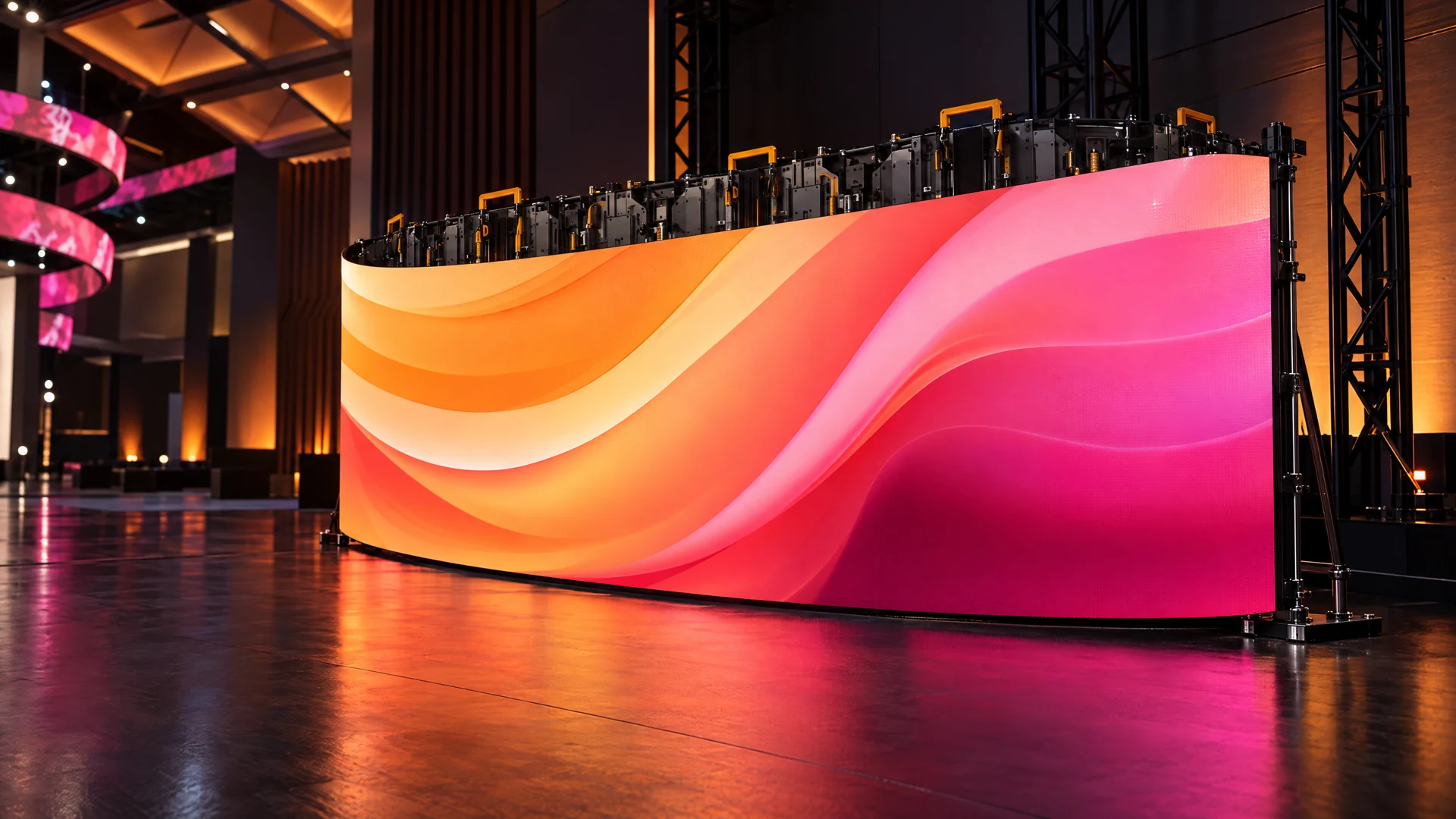

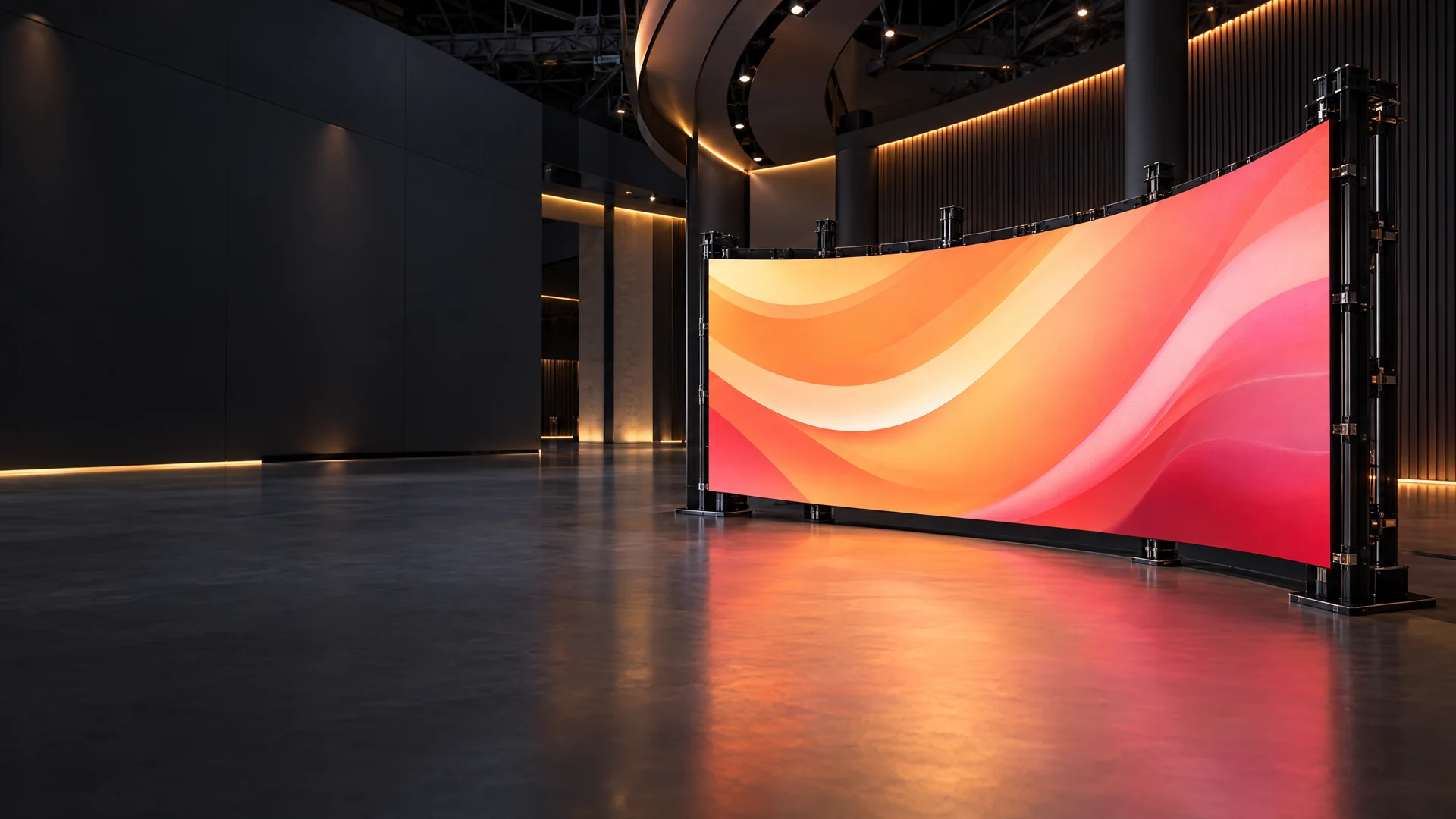

Flexible Rental — application background visual

PRODUCT × ENVIRONMENT

Curved creative stage

Angle-lock connections support curved, wave-shaped and corner displays for creative staging.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Angle locks allow curved, wave and corner-shaped stage designs.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

Technical specifications

CHOOSE A SOURCE CONFIGURATION (4)

CURRENT CONFIGURATION · Indoor P1.953

PIXEL PITCH
1.953
BRIGHTNESS
≥ 600
REFRESH
≥ 3840Hz
SIZE
250*250*15
Flexible Rental — Technical specifications
Parameter Indoor P1.953
Pixel Pitch(mm) 1.953
LED Package SMD1515
Density (dots/m²) 262144
Module Size(mm) 250*250*15
Module Resolution 128*128
Module Weight(kg) 0.6
Scan Mode 1/32S
Cabinet Size(mm) 500*500*86/500*1000*86
Cabinet Weight(kg) 7
Cabinet Resolution 256*256
Viewing Distance(m) ≥ 2
Frame Rate(Hz) 60Hz
Refresh Rate(Hz) ≥ 3840Hz
Brightness(cd/m²) ≥ 600
Avg Power(W/m²) 260
Max Power(W/m²) 800
IP Rating IP43
Working Voltage AC:110V-220V
Maintenance Front / Rear
Viewing Angle H:160° V:160°
Operating Temp -20℃ ~ +50℃

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
