Aluminium Floor

LED floor display · 6 source configurations

Tile 500 × 500 × 82 mm Source: Cabinet Size

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. The adjustable feet are illustrative.

01 / PIXEL PITCH

1.5625mm / 1.953mm …

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch NOW SHOWINGAluminium Floor↗

TEXASSONIC / Rental & Stage

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Aluminium Floor

LED floor at vehicle exhibitions

Load-bearing floor cabinets with optional interactivity.

Load-bearing floor cabinets combine display content with ground installation and optional interaction.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 03

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

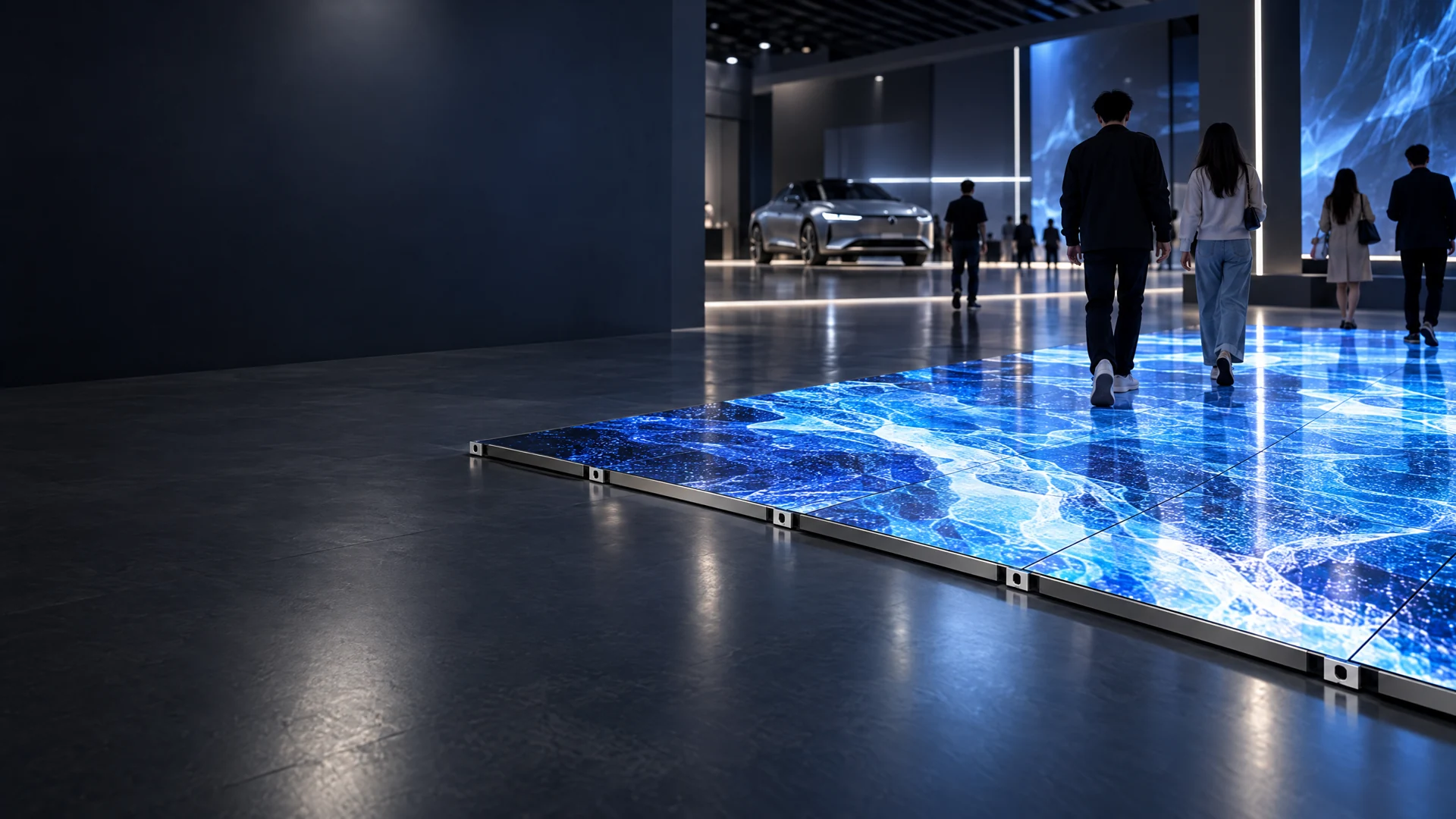

Aluminium Floor — application background visual

PRODUCT × ENVIRONMENT

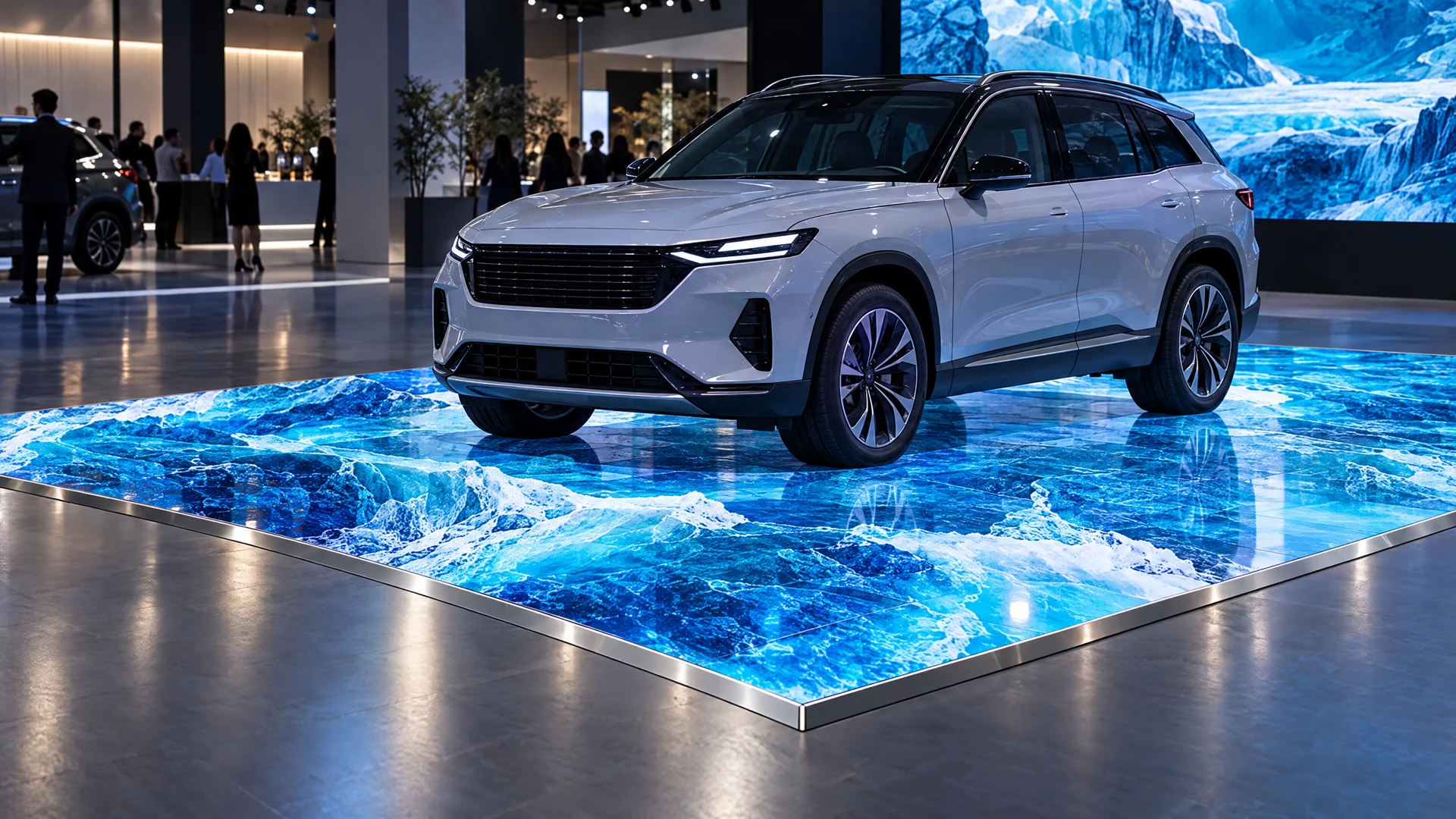

LED floor at vehicle exhibitions

Load-bearing floor cabinets combine display content with ground installation and optional interaction.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Load-bearing floor cabinets with optional interactivity.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (6)

CURRENT CONFIGURATION · P1.5625

PIXEL PITCH: 1.5625mm
BRIGHTNESS: 700
REFRESH: 3840Hz
SIZE: 250X250mm

Configuration

Aluminium Floor — Technical specifications
Parameter	P1.5625	P1.953	P2.604	P2.976	P3.91	P4.81
Pixel Pitch	1.5625mm	1.953mm	2.604mm	2.976mm	3.91mm	4.81mm
LED Configuration	SMD1010	SMD1212	SMD1515	SMD1415	SMD1921	SMD1921/2727
Pixel Density(dot/m²)	409600	262144	147456	112896	65536	43232
Module Size	250X250mm	250X250mm	250X250mm	250X250mm	250X250mm	250X250mm
Module Resolution	160x160	128x128	96x96	84x84	64x64	52x52
Cabinet Size	500x500x82mm/500x1000x82mm	500x500x82mm/500x1000x82mm	500x500x82mm/500x1000x82mm	500x500x82mm/500x1000x82mm	500x500x82mm/500x1000x82mm	500x500x82mm/500x1000x82mm
Cabinet Resolution	320x320 320x640	256x256 256x512	192x192 192x384	168x168 168x336	128x128 128x256	104x104 104x208
Cabinet Weight	11kg/22kg	11kg/22kg	11kg/22kg	11kg/22kg	11kg/22kg	11kg/22kg
Load Bearing	1.0t/m²	1.0t/m²	1.0t/m²	1.5-2.0t/m²	1.5-2.0t/m²	1.5-2.0t/m²
IP Rating (front/back)	IP54	IP54	IP54	IP65/IP54	IP65/IP54	IP65/IP54
Environment	Indoor	Indoor	Indoor	Indoor	Indoor	Indoor
Brightness(cd/m²)	700	700	700	2300	2500	2500
Viewing Angle (H/V)	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°	140°/140°
Gray Scale	≥ 14bit	≥ 14bit	≥ 14bit	≥ 14bit	≥ 14bit	≥ 14bit
Max. Power Consumption	800W/m²	800W/m²	800W/m²	800W/m²	800W/m²	800W/m²
Ave. Power Consumption	270W/m²	270W/m²	270W/m²	270W/m²	270W/m²	270W/m²
Refresh Rate	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Operation Power	AC110-240V, 50/60Hz	AC110-240V, 50/60Hz	AC110-240V, 50/60Hz	AC110-240V, 50/60Hz	AC110-240V, 50/60Hz	AC110-240V, 50/60Hz
Scan Grade	1/32S	1/32	1/24S	1/21S	1/16S	1/13S
Interactive	○ /●	○ /●	○ /●	○ /●	○ /●	○ /●
Operating Temperature	0℃~40℃ (work), -20℃~60℃ (store)	0℃~40℃ (work), -20℃~60℃ (store)	0℃~40℃ (work), -20℃~60℃ (store)	0℃~40℃ (work), -20℃~60℃ (store)	0℃~40℃ (work), -20℃~60℃ (store)	0℃~40℃ (work), -20℃~60℃ (store)
Operating Humidity	35%~85% (work), 10%~90% (store)	35%~85% (work), 10%~90% (store)	35%~85% (work), 10%~90% (store)	35%~85% (work), 10%~90% (store)	35%~85% (work), 10%~90% (store)	35%~85% (work), 10%~90% (store)
Cabinet Material	Aluminum profiles/Iron profiles	Aluminum profiles/Iron profiles	Aluminum profiles/Iron profiles	Aluminum profiles/Iron profiles	Aluminum profiles/Iron profiles	Aluminum profiles/Iron profiles

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
