Carbon Fiber Rental

LOADING 3D0/1

FLAGSHIP DISPLAY Highlights ↓

TX-CARBON / Rental & Stage

Carbon Fiber Rental

Carbon-fiber modular rental display · 3 source configurations

Cabinet A 1000 × 1000 mm Source: Cabinet Size (mm)

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. Cabinet depth is not listed and is illustrative.

01 / PIXEL PITCH

X:3.9mm Y:7.8mm / 5.9mm …

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch (mm) NOW SHOWINGCarbon Fiber Rental↗
Carbon Fiber Rental — Open-grid rental stage display Application concept
Carbon Fiber Rental — product photo
Product photo

FLAGSHIP 02 / 04 · Rental & Stage

Why this display

Carbon fibre. About 10 kg for a 1 × 1 m cabinet.

A carbon-fibre rental cabinet with quick locks for curved (0 to ±10°) and right-angle assembly — 7680 Hz refresh, IP65 protection, and up to 20 m hoisted or floor-stacked.

A cabinet, 1000 × 1000 mm (±5%)
10–10.5 kg
Refresh rate
7680 Hz
Curved lock angle
±10°
Max hoisting / floor-standing height
20 m
  • Concert stages
  • Touring rental
  • Outdoor events · IP65
BY5.9 cabinet weights are marked “under design” in the source; the weight shown is for BY3.9-7.8 and BY7.8.
REQUEST A QUOTE ↗
Figures from the source specification: Cabinet Weight (kg) ±5% · Refresh Rate (Hz) · Curved Lock Angle · Max Height

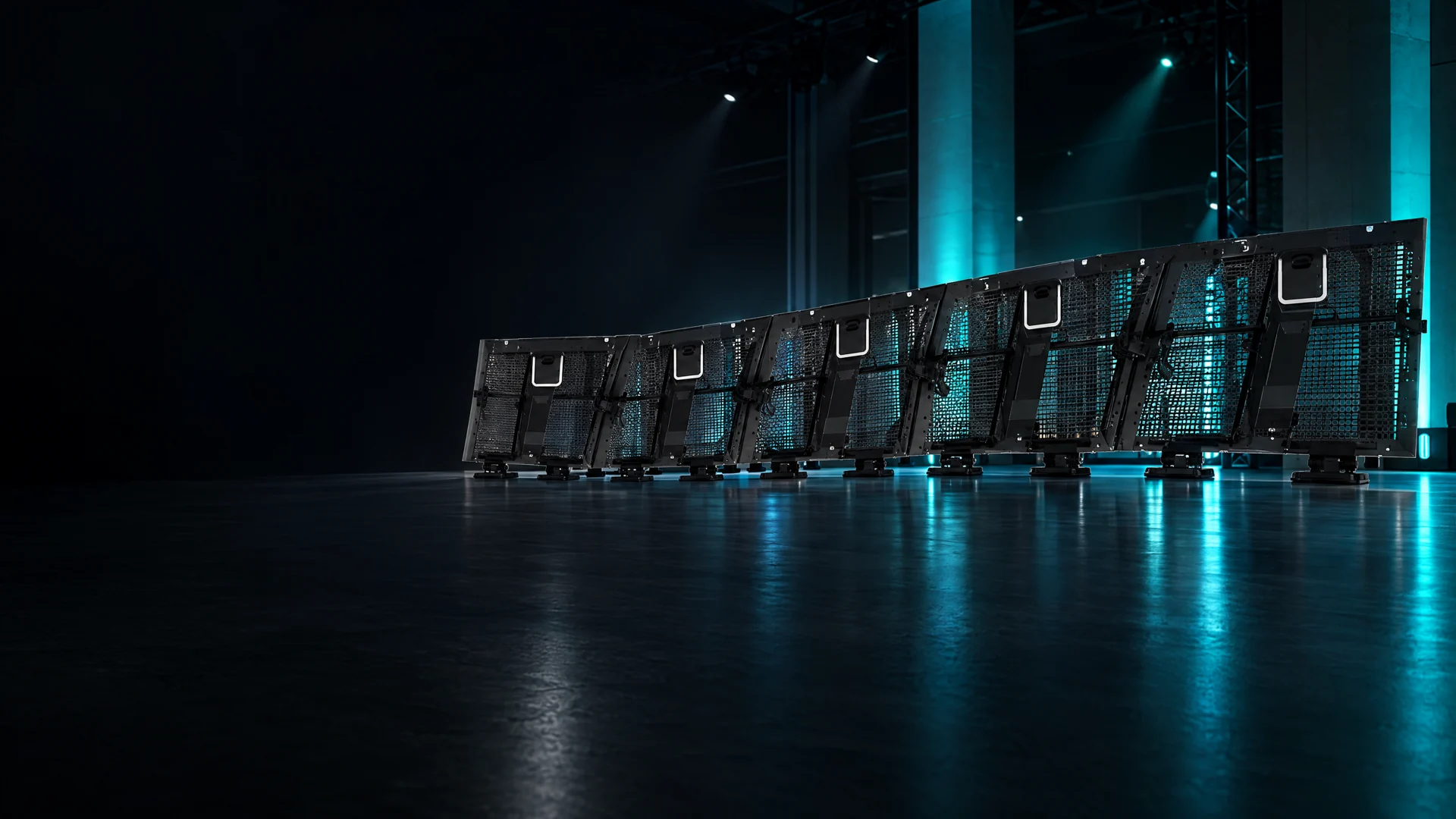

Carbon Fiber Rental — application background visual

PRODUCT × ENVIRONMENT

Open-grid rental stage display

Quick-lock modular construction combines stage display content with live-event lighting.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Quick locks and curved or right-angle assembly options.

Specifications are for reference. Final configuration is subject to project confirmation.

BY5.9 cabinet weights are marked under design in the source.

Discuss a project ↗

Technical specifications

CHOOSE A SOURCE CONFIGURATION (3)

CURRENT CONFIGURATION · BY3.9-7.8

PIXEL PITCH
X:3.9mm Y:7.8mm
BRIGHTNESS
Black LED: ≤2000, White LED: ≤4500
REFRESH
7680
SIZE
500×250
Carbon Fiber Rental — Technical specifications
Parameter BY3.9-7.8
Pixel Pitch (mm) X:3.9mm Y:7.8mm
LED Chip Model SMD1921
Scan Mode (S) 1/8
Refresh Rate (Hz) 7680
Gray Scale (bit) 16
Brightness (nits) Black LED: ≤2000, White LED: ≤4500
Module Size (mm) 500×250
Module Resolution (dot) 128×32
Cabinet Size (mm) A:1000×1000 B1:1000×500 B2:500×1000 C:500×500
Cabinet Resolution (dot) A:256×128 B1:256×64 B2:128×128 C:128×64
Cabinet Material Carbon Fiber
Cabinet Weight (kg) ±5% A:10.5, B1:6.3, B2:6.9, C:4.6
Cabinet+Wind Bracket Weight (Kg) ±5% A:15.5, B1:/, B2:/, C:/
Viewing Angle ≥ 160°
Curved Lock Angle 0, ±2.5, ±5, ±7.5, ±10
Max Power (W/ ㎡ ) 320
Avg Power (W/ ㎡ ) 160
Operating Voltage (V) AC100-240
Max Height Max Hoisting Height:20m, Max Floor-standing Height:20m
IP Rating IP65
Working Env. -20℃ ~ +45℃ / 10% ~ 90%RH
Storage Env. -40℃ ~ +60℃ / 10% ~ 90%RH

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
