Outdoor Die-cast

Fixed outdoor LED display · 5 source configurations

Cabinet 960 × 960 × 90 mm Source: Cabinet Size (mm)

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry.

01 / PIXEL PITCH

4–10 mm

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch (mm) NOW SHOWINGOutdoor Die-cast↗

TEXASSONIC / Outdoor & Fixed

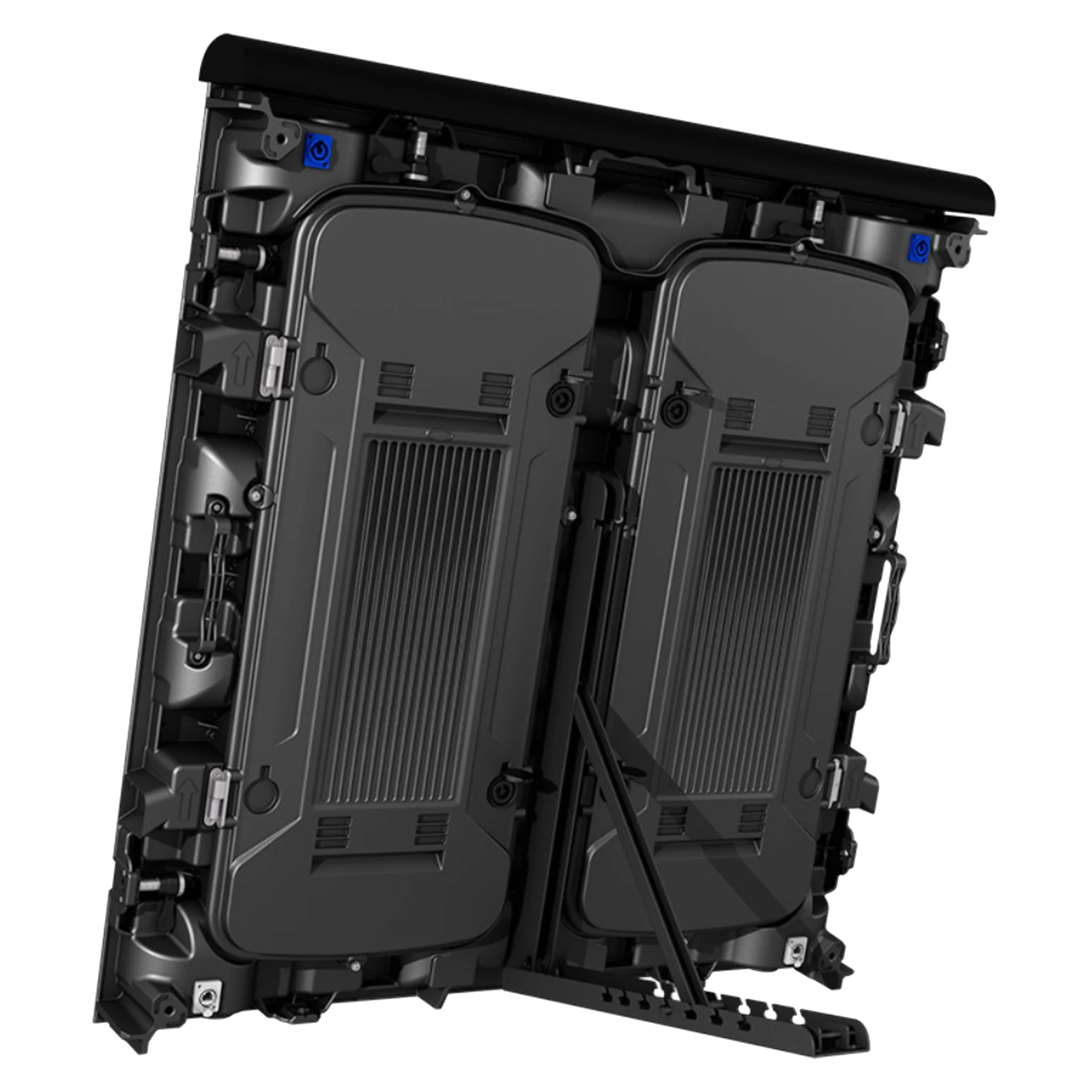

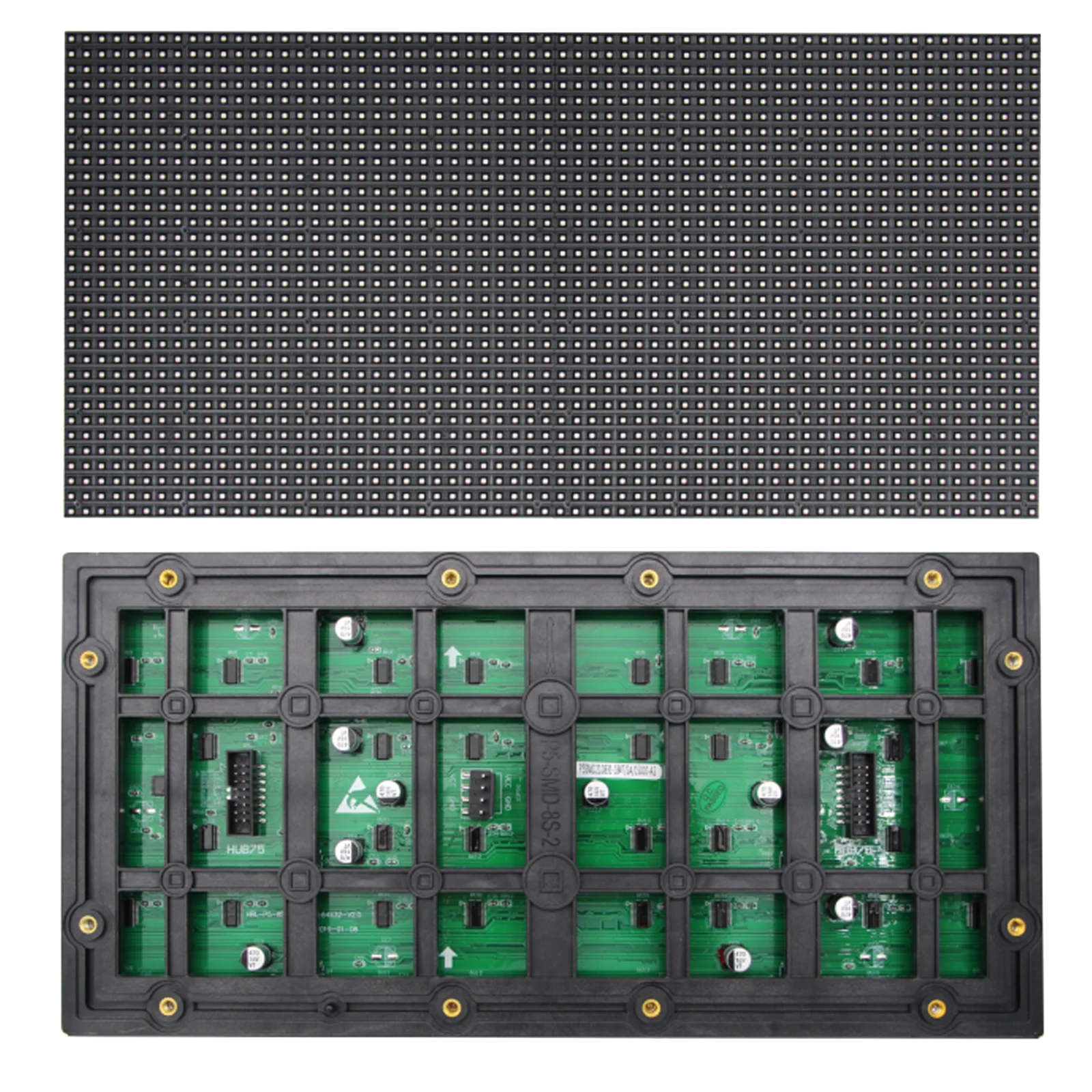

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Outdoor Die-cast

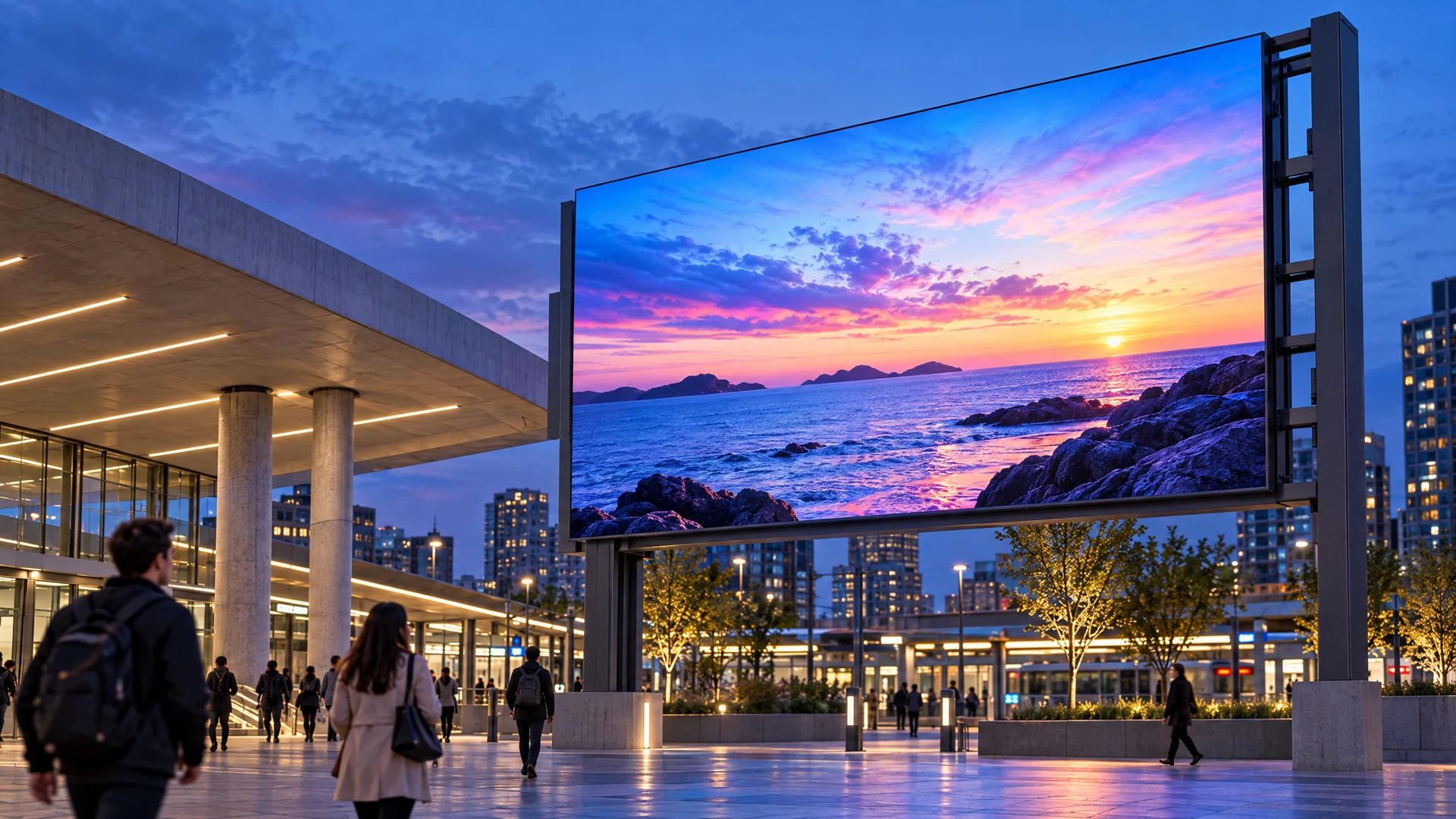

Outdoor retail plaza

Die-cast aluminium construction. Rear maintenance.

A large-format outdoor display creates a focal point for commercial architecture and brand content.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

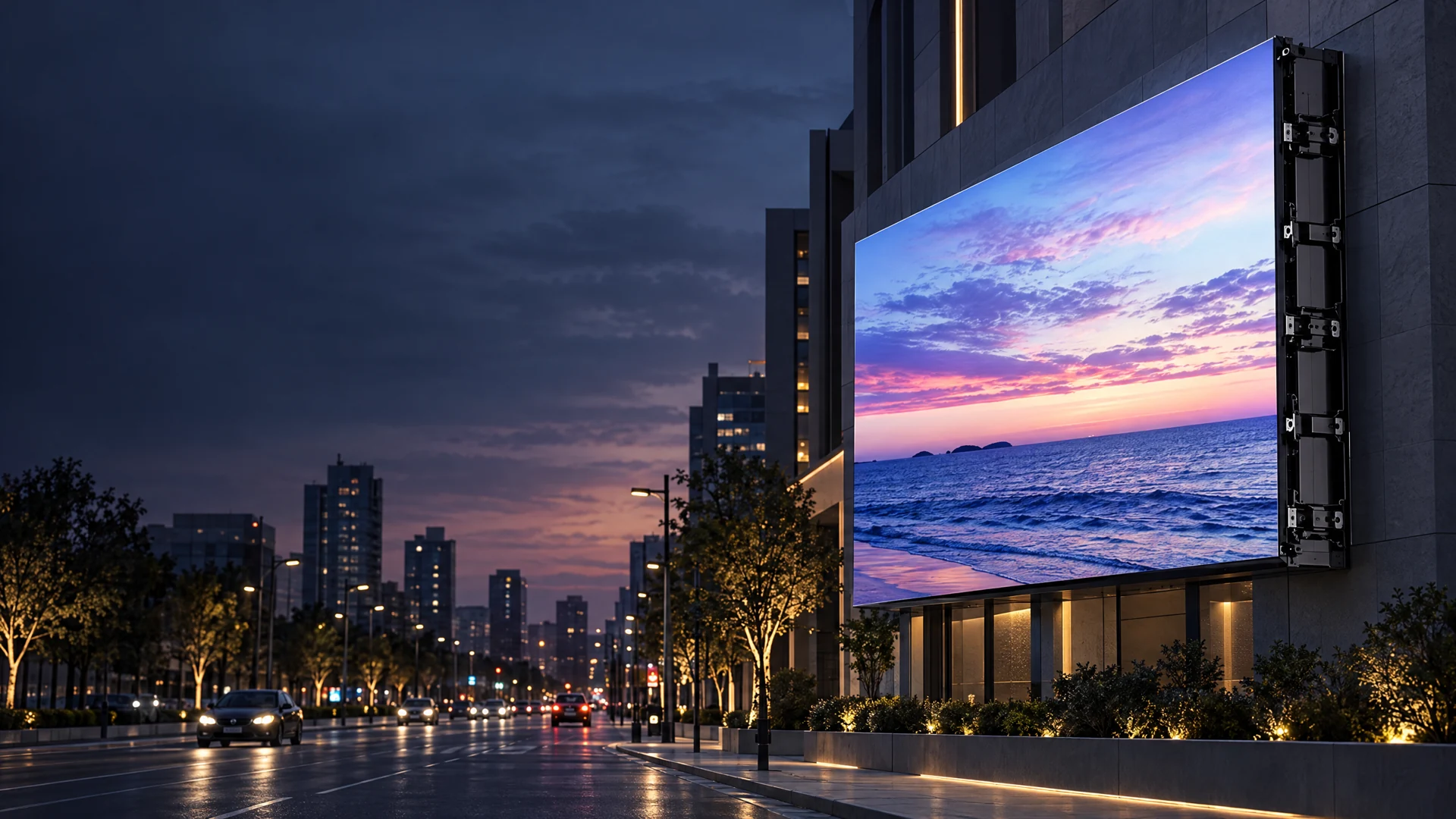

Outdoor Die-cast — application background visual

PRODUCT × ENVIRONMENT

Outdoor retail plaza

A large-format outdoor display creates a focal point for commercial architecture and brand content.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Die-cast aluminium construction. Rear maintenance.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (5)

CURRENT CONFIGURATION · P4

PIXEL PITCH: 4
BRIGHTNESS: 5500
REFRESH: 3840
SIZE: 320×160

Configuration

Outdoor Die-cast — Technical specifications
Parameter	P4	P5	P6.67	P8	P10
Pixel Structure (SMD)	1921	2727	2727	2727	3535
Pixel Pitch (mm)	4	5	6.67	8	10
Module Resolution	80×40	64×32	48×24	40×20	32×16
Module Size (mm)	320×160	320×160	320×160	320×160	320×160
Module Weight (kg)	0.45	0.45	0.45	0.45	0.45
Cabinet Resolution	240×240	192×192	144×144	120×120	96×96
Cabinet Size (mm)	960×960×90	960×960×90	960×960×90	960×960×90	960×960×90
Cabinet Area (m²)	0.92	0.92	0.92	0.92	0.92
Cabinet Weight (kg)	25	25	25	25	25
Cabinet Material	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum	Die-cast Aluminum
Pixel Density (dots/m²)	62,500	40,000	22,500	15,625	10,000
IP Rating	IP65	IP65	IP65	IP65	IP65
Brightness (nits)	5500	5500	6000	6000	6000
Gray Scale (bit)	14–16	14–16	14–16	14–16	14–16
Viewing Angle (H×V)	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°
Contrast Ratio	10000:1	10000:1	10000:1	10000:1	10000:1
Max Power (W/m²)	900	900	900	900	900
Avg Power (W/m²)	360	360	360	360	360
Power Supply	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V
Frame Rate (Hz)	50 & 60	50 & 60	50 & 60	50 & 60	50 & 60
Scan Number (s)	1/10	1/8	1/6	1/4	1/4
Refresh Rate (Hz)	3840	3840	3840	3840	3840
Maintenance	Rear	Rear	Rear	Rear	Rear
Operating Temp / Humidity	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
