WC Series

Outdoor aluminium LED display · 5 source configurations

Cabinet 960 × 960 × 85 mm Source: Cabinet Size (mm)

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry.

01 / PIXEL PITCH

4.44–10 mm

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch (mm) NOW SHOWINGWC Series↗

TEXASSONIC / Outdoor & Fixed

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

WC Series

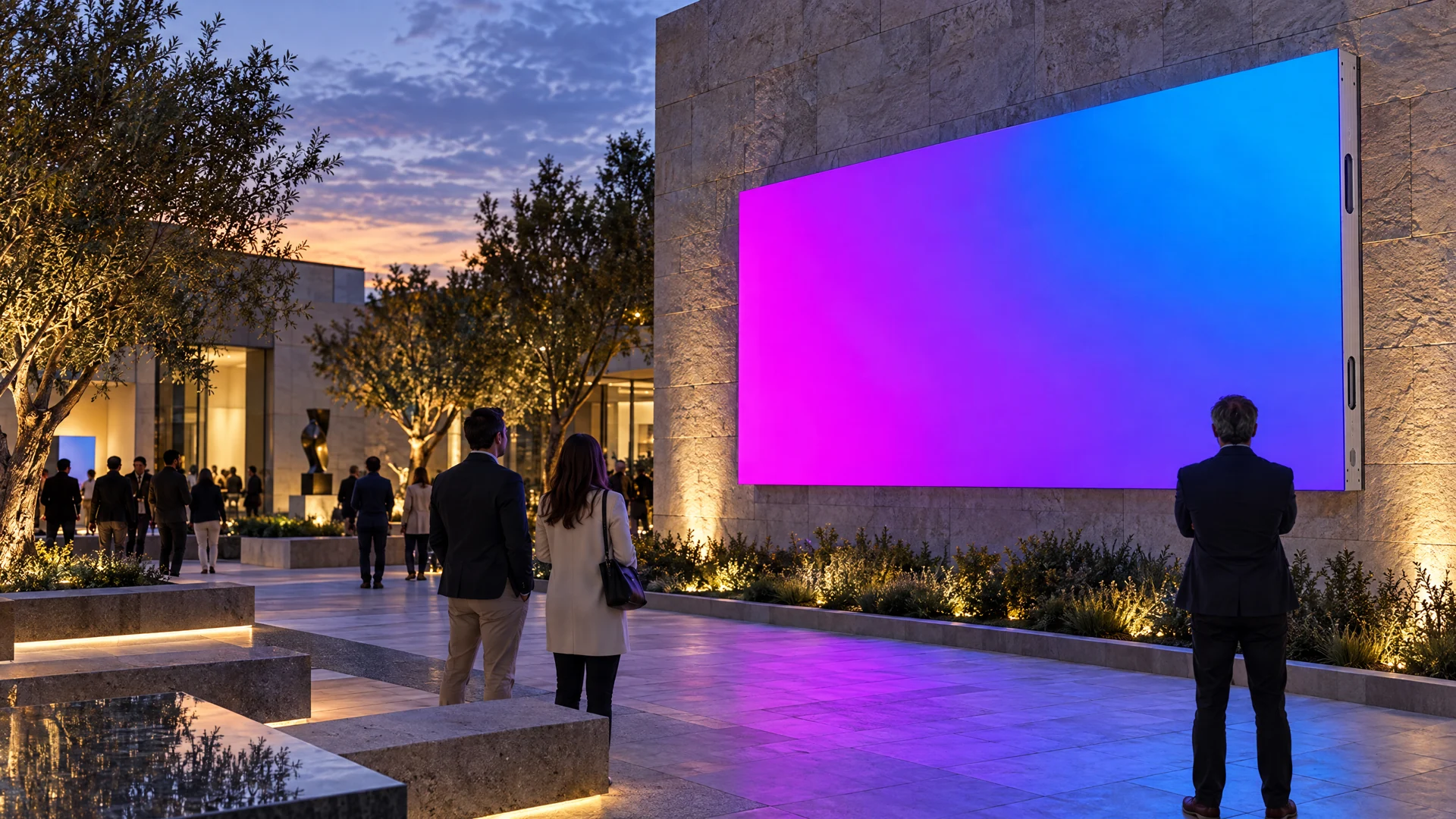

Outdoor event plaza

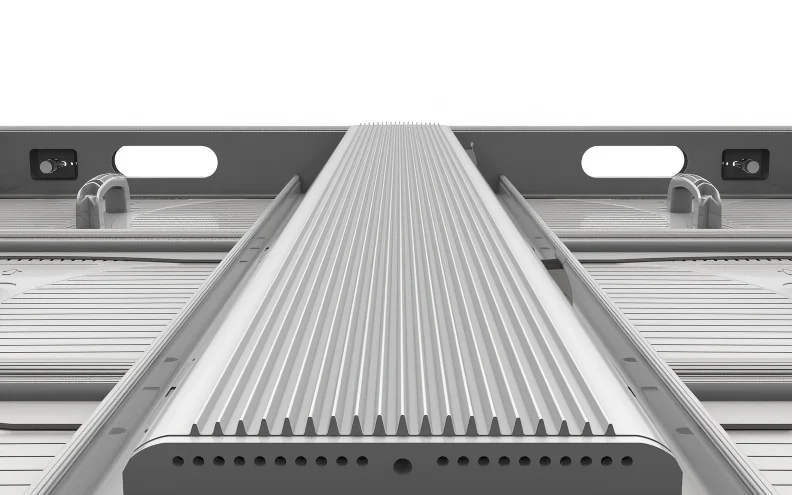

Aluminium cabinet with an extended heat-sink design.

Aluminium cabinets form large-format displays for adaptable plaza and event content.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

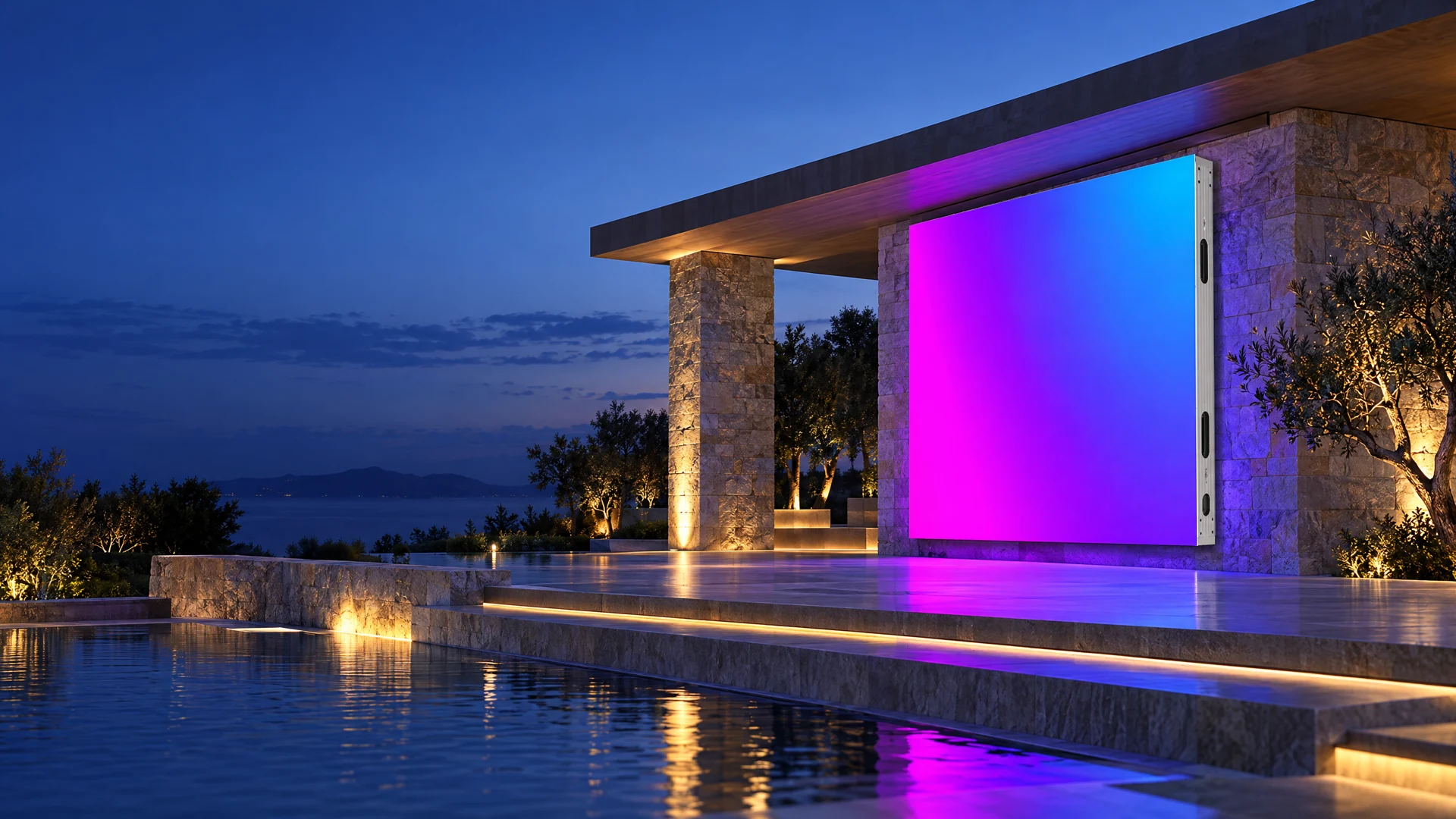

WC Series — application background visual

PRODUCT × ENVIRONMENT

Outdoor event plaza

Aluminium cabinets form large-format displays for adaptable plaza and event content.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

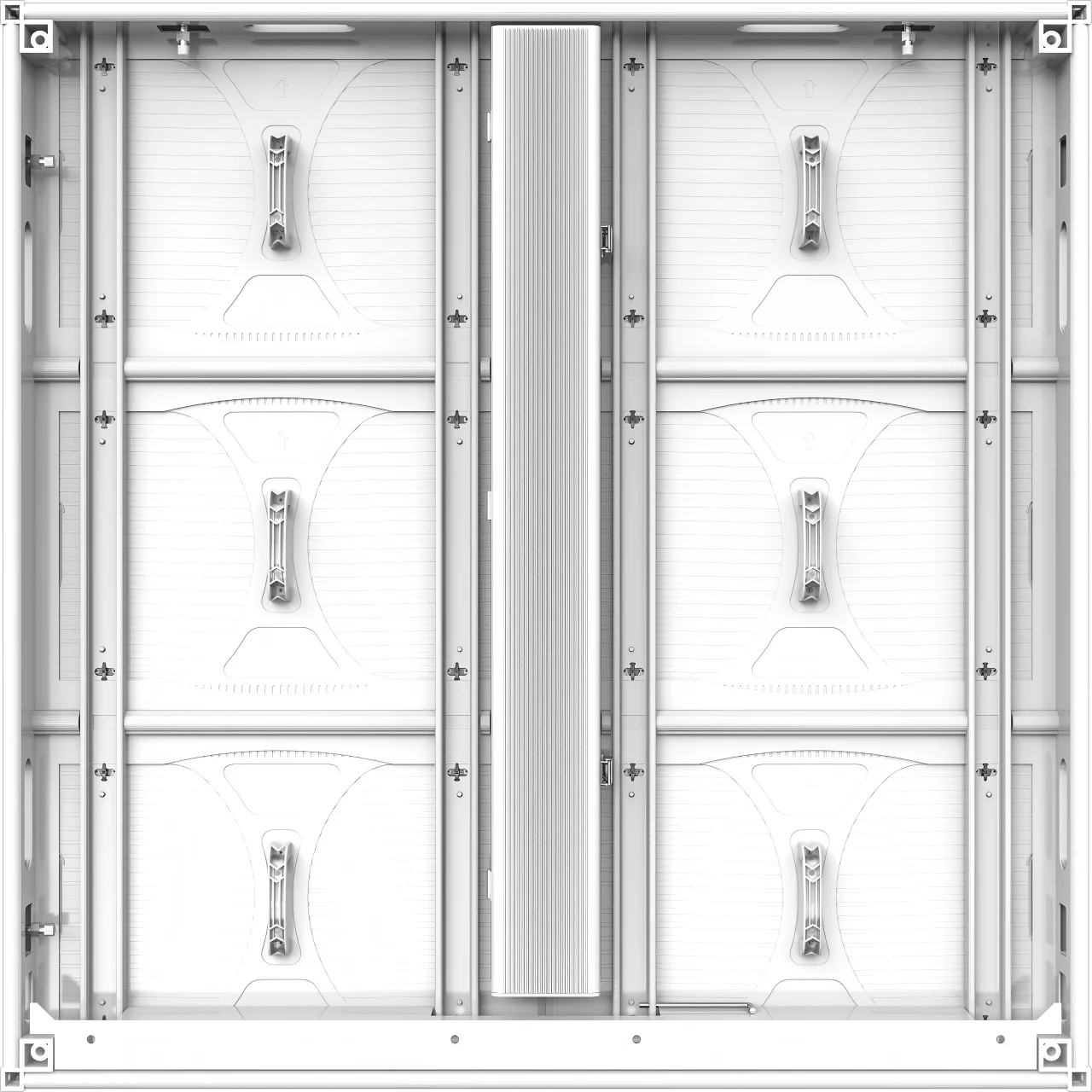

Aluminium cabinet with an extended heat-sink design.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (5)

CURRENT CONFIGURATION · P4.44

PIXEL PITCH: 4.44
BRIGHTNESS: ≥ 5000
REFRESH: 3840
SIZE: 480×320

Configuration

WC Series — Technical specifications
Parameter	P4.44	P5.7	P6.67	P8	P10
Pixel Structure (SMD)	1921	2727	2727	2727	2727
Pixel Pitch (mm)	4.44	5.7	6.67	8	10
Module Resolution	108×72	84×56	72×48	60×40	48×32
Module Size (mm)	480×320	480×320	480×320	480×320	480×320
Module Weight (kg)	2	2	2	2	2
Cabinet Resolution	216×216	168×168	144×144	120×120	96×96
Cabinet Size (mm)	960×960×85	960×960×86	960×960×87	960×960×88	960×960×88
Cabinet Area (m²)	0.92	0.92	0.92	0.92	0.92
Cabinet Weight (kg)	25	25	25	25	25
Cabinet Material	Extruded Aluminum/Die-cast Aluminum	Extruded Aluminum/Die-cast Aluminum	Extruded Aluminum/Die-cast Aluminum	Extruded Aluminum/Die-cast Aluminum	Extruded Aluminum/Die-cast Aluminum
Pixel Density (dots/m²)	50,625	30,625	22,500	15,625	10,000
IP Rating	IP66	IP66	IP66	IP66	IP66
Brightness (nits)	≥ 5000	≥ 6500	≥ 6500	≥ 6500	≥ 6500
Gray Scale (bit)	14–16	14–16	14–16	14–16	14–16
Color Temperature (K)	6500–9000 Adjustable	6500–9000 Adjustable	6500–9000 Adjustable	6500–9000 Adjustable	6500–9000 Adjustable
Viewing Angle (H×V)	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°
Contrast Ratio	≥ 15000:1	≥ 15000:1	≥ 15000:1	≥ 15000:1	≥ 15000:1
Max Power (W/m²)	≤ 550	≤ 550	≤ 550	≤ 550	≤ 550
Avg Power (W/m²)	≤ 186	≤ 186	≤ 186	≤ 186	≤ 186
Power Supply	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V
Frame Rate (Hz)	50 & 60	50 & 60	50 & 60	50 & 60	50 & 60
Scan Number (S)	1/9	1/7	1/6	1/3	1/2
Refresh Rate (Hz)	3840	3840	3840	3840	3840
Maintenance	Front / Rear	Front / Rear	Front / Rear	Front / Rear	Front / Rear
Operating Temp / Humidity	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
