Outdoor Sheet Metal

Fixed outdoor LED display · 7 source configurations

Cabinet 960 × 960 × 150 mm Source: Cabinet Size (mm)

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry.

01 / PIXEL PITCH

2.5–10 mm

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch (mm) NOW SHOWINGOutdoor Sheet Metal↗

TEXASSONIC / Outdoor & Fixed

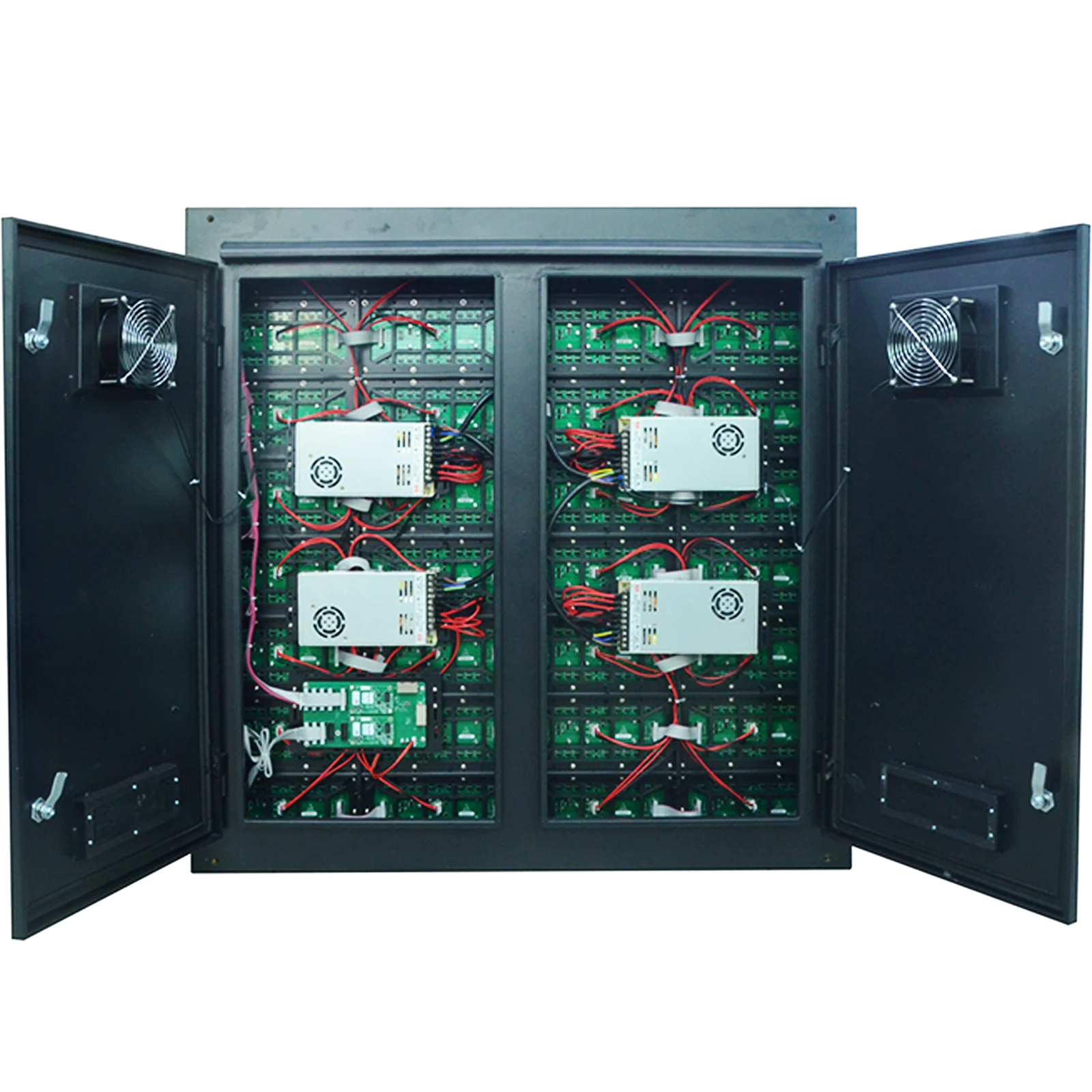

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Outdoor Sheet Metal

Urban outdoor display

Sheet-metal cabinet with multi-channel cooling.

Connect outdoor messaging with public space through adaptable visual content.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 03

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

Outdoor Sheet Metal — application background visual

PRODUCT × ENVIRONMENT

Urban outdoor display

Connect outdoor messaging with public space through adaptable visual content.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Sheet-metal cabinet with multi-channel cooling.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (7)

CURRENT CONFIGURATION · P2.5

PIXEL PITCH: 2.5
BRIGHTNESS: 4500
REFRESH: 3840
SIZE: 320×160

Configuration

Outdoor Sheet Metal — Technical specifications
Parameter	P2.5	P3.076	P4	P5	P6.67	P8	P10
Pixel Structure (SMD)	1415	1415	1921	2727	2727	2727	3535
Pixel Pitch (mm)	2.5	3.076	4	5	6.67	8	10
Module Resolution	128×64	104×52	80×40	64×32	48×24	40×20	32×16
Module Size (mm)	320×160	320×160	320×160	320×160	320×160	320×160	320×160
Module Weight (kg)	0.45	0.45	0.45	0.45	0.45	0.45	0.45
Cabinet Resolution	384×384	312×312	240×240	192×192	144×144	120×120	96×96
Cabinet Size (mm)	960×960×150	960×960×150	960×960×150	960×960×150	960×960×150	960×960×150	960×960×150
Cabinet Area (m²)	0.92	0.92	0.92	0.92	0.92	0.92	0.92
Cabinet Weight (kg)	34	34	34	34	34	34	34
Cabinet Material	Sheet Metal	Sheet Metal	Sheet Metal	Sheet Metal	Sheet Metal	Sheet Metal	Sheet Metal
Pixel Density (dots/m²)	160,000	105,688	62,500	40,000	22,500	15,625	10,000
IP Rating	IP65	IP65	IP65	IP65	IP65	IP65	IP65
Brightness (nits)	4500	4500	5500	5500	6000	6000	6000
Gray Scale (bit)	14–16	14–16	14–16	14–16	14–16	14–16	14–16
Viewing Angle (H×V)	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°
Contrast Ratio	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1	10000:1
Max Power (W/m²)	900	900	900	900	900	900	900
Avg Power (W/m²)	360	360	360	360	360	360	360
Power Supply	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V	AC100~240V
Frame Rate (Hz)	50 & 60	50 & 60	50 & 60	50 & 60	50 & 60	50 & 60	50 & 60
Scan Number (s)	1/16	1/13	1/10	1/8	1/6	1/4	1/2
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840	3840
Maintenance	Rear	Rear	Front / Rear	Front / Rear	Front / Rear	Front / Rear	Front / Rear
Operating Temp / Humidity	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
