Flexible Film

LOADING 3D0/1

FLAGSHIP DISPLAY Highlights ↓

TX-FILM / Creative & Transparent

Flexible Film

Indoor transparent LED film · 7 source configurations

Module 1000 × 240 × 3 mm Source: Module Size + Module Thickness

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

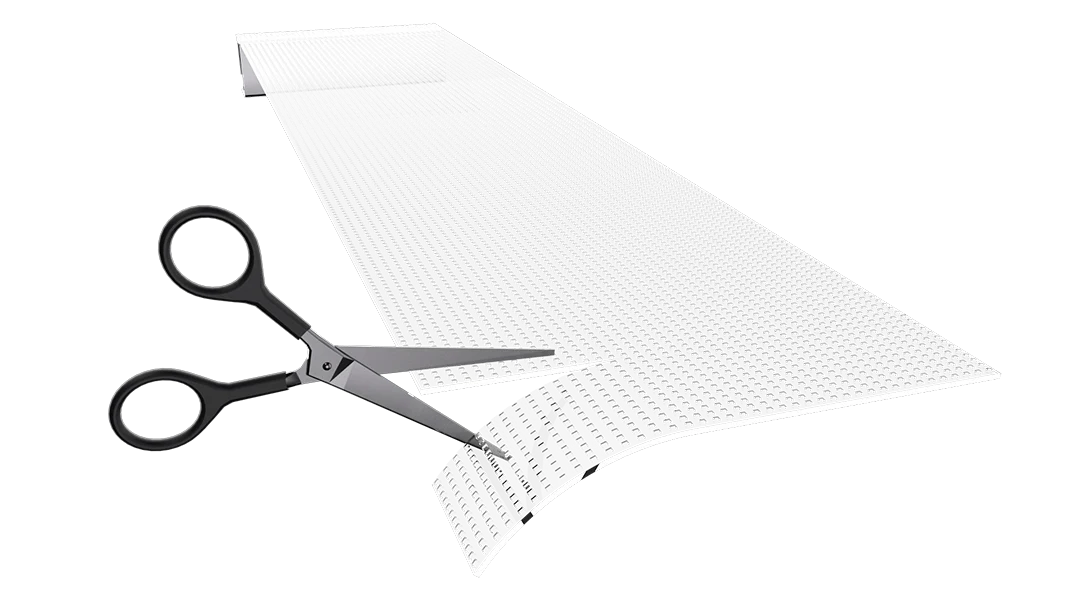

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. The curl shows flexibility and is illustrative.

01 / PIXEL PITCH

4mm / 5mm …

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch NOW SHOWINGFlexible Film↗
Flexible Film — Luminous glass-film installation Application concept
Flexible Film — product photo
Product photo

FLAGSHIP 04 / 04 · Creative & Transparent

Why this display

3 mm film that turns glass into a screen.

Self-emitting flexible LED film for transparent glass and acrylic — 65–90% transmittance, 3.5 kg/m², P4 to P40, in 1000 or 1500 × 240 mm modules.

Module thickness
3 mm
Transmittance
65–90 %
Module weight
3.5 kg/m²
Brightness (2000 / 4000)
4000 cd/m²
  • Shop windows
  • Glass walls
  • Showrooms · IP43
REQUEST A QUOTE ↗
Figures from the source specification: Module Thickness · Transmittance · Module Weight(kg/m²) · Brightness(cd/m²)

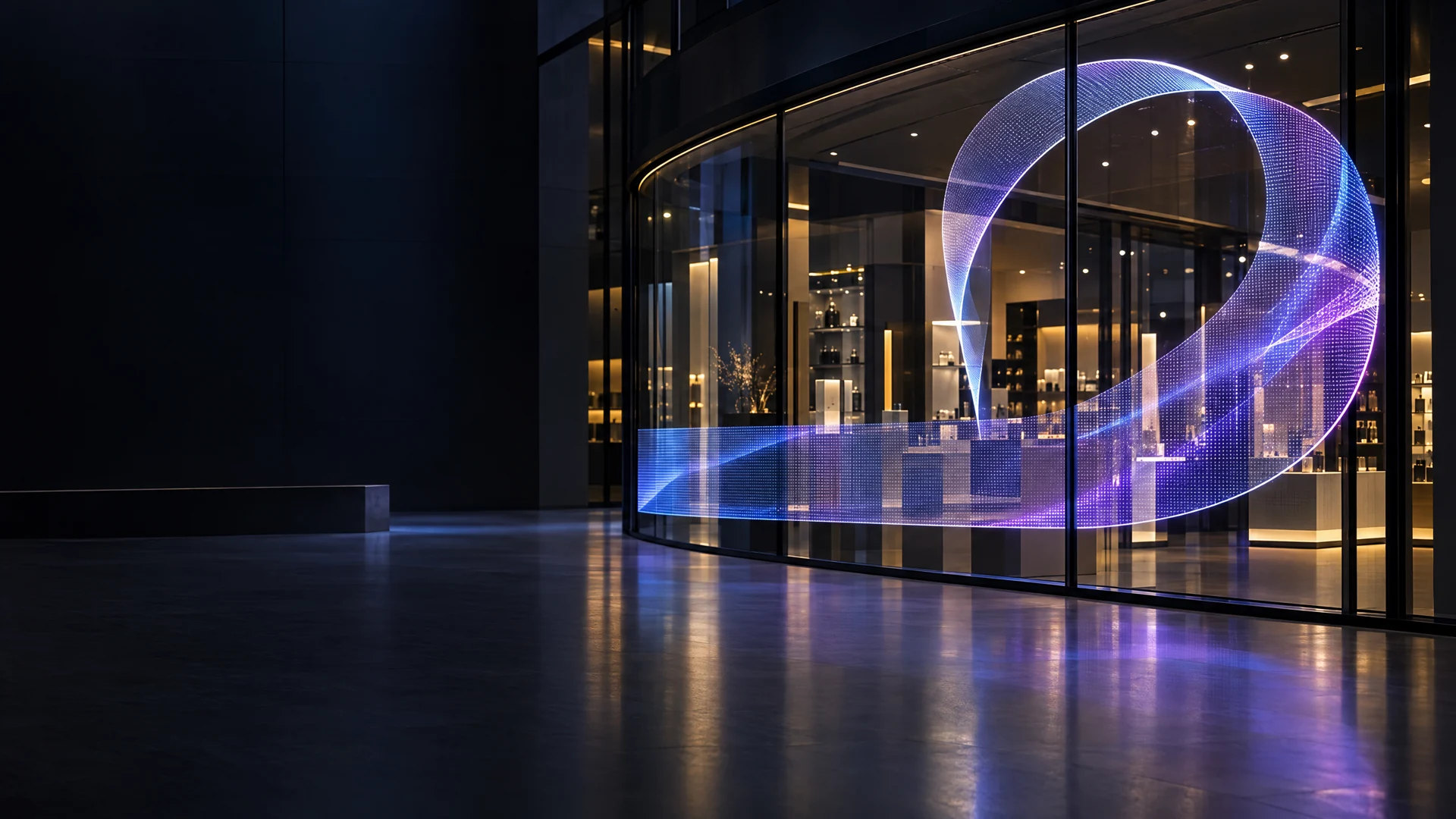

Flexible Film — application background visual

PRODUCT × ENVIRONMENT

Luminous glass-film installation

Flexible film brings luminous content to glass and acrylic surfaces.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Self-emitting flexible film for transparent glass and acrylic surfaces.

Specifications are for reference. Final configuration is subject to project confirmation.

Power-consumption units in the source require confirmation.

Discuss a project ↗

Technical specifications

CHOOSE A SOURCE CONFIGURATION (7)

CURRENT CONFIGURATION · P4

PIXEL PITCH
4mm
BRIGHTNESS
2000
REFRESH
≥ 3840Hz
SIZE
1000mm×240mm,1500mm×240mm
Flexible Film — Technical specifications
Parameter P4
Pixel Pitch 4mm
Pixel Density(dots/m²) 62500
Module Size 1000mm×240mm,1500mm×240mm
Viewing Distance 5~100m
Transmittance 65%
Module Weight(kg/m²) 3.5
Max Viewing Angle 160°
Module Thickness 3mm
Refresh Rate ≥ 3840Hz
Brightness(cd/m²) 2000
Operating Temperature -20~55°C
Driving Method Static
IP Rating IP43

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
