Rolling Display

LOADING 3D0/1

FLAGSHIP DISPLAY Highlights ↓

TX-ROLLING / Creative & Transparent

Rolling Display

Rollable LED and carpet display · 7 source configurations

Cabinet 500 × 1000 × 17 mm Source: Cabinet Size

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. The top roller housing is illustrative.

01 / PIXEL PITCH

0.78–3.91

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch NOW SHOWINGRolling Display↗
Rolling Display — Rollable exhibition display Application concept
Rolling Display — product photo
Product photo

FLAGSHIP 01 / 04 · Creative & Transparent

Why this display

17 mm thin. Roll it, hang it, lay it flat.

A rollable LED display only 17 mm thick and 18 kg/m², with wall, truss and floor installation options and seven pixel pitches from P0.78 to P3.91.

Cabinet thickness (500 × 1000 mm)
17 mm
Weight
18 kg/m²
Pixel pitch, 7 configurations
P0.78–3.91
Refresh rate
3840 Hz

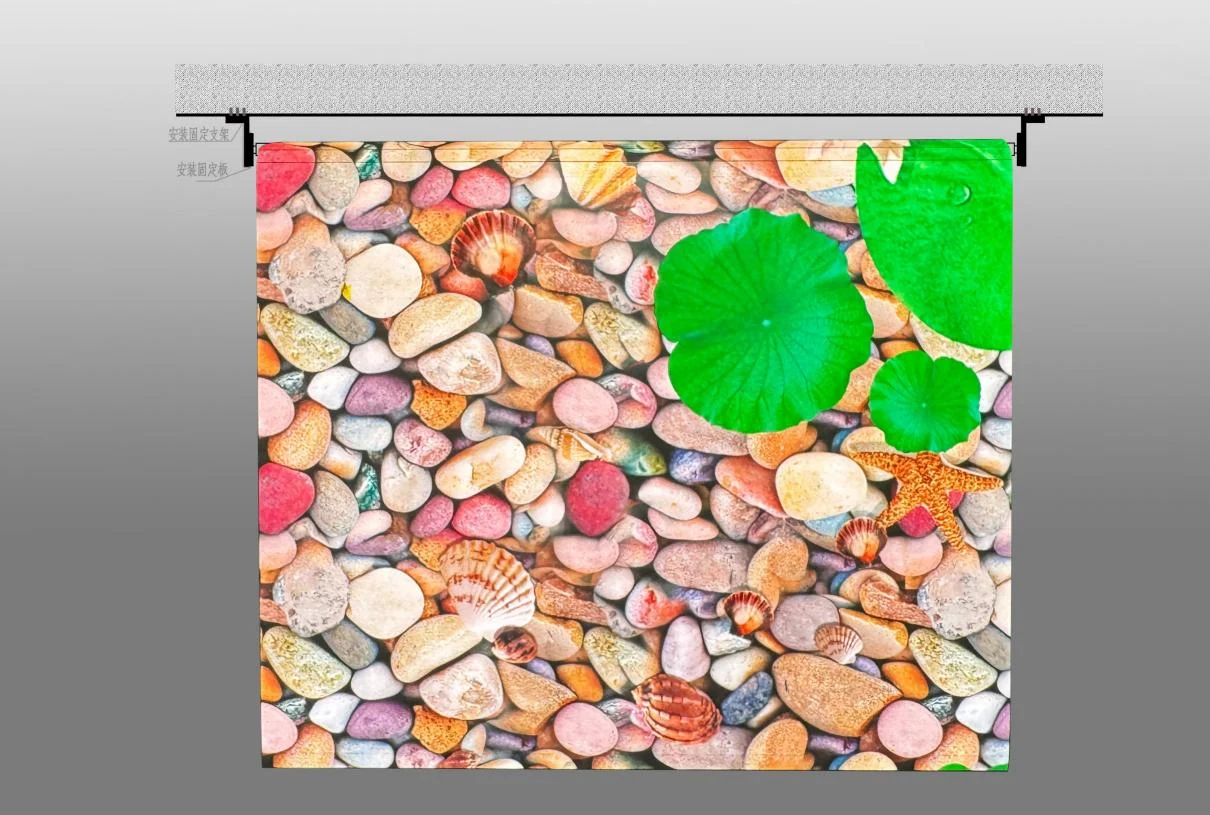

  • Wall / fixed

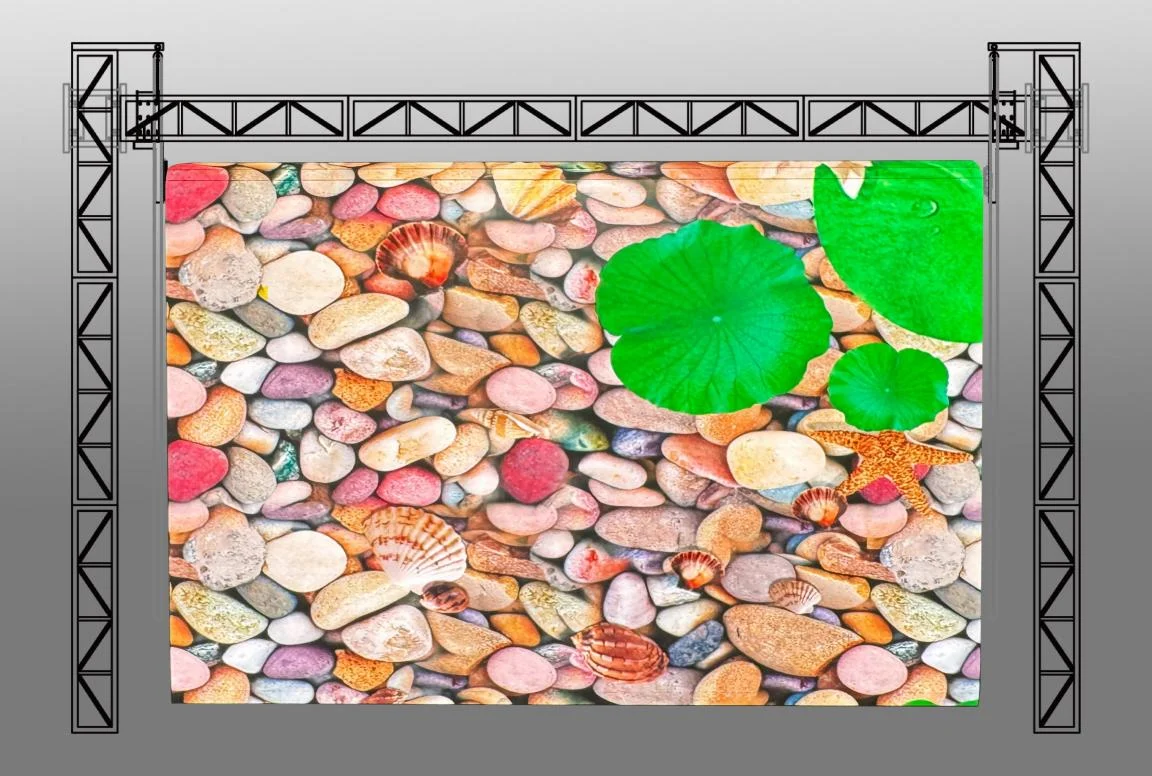

  • Truss hanging
  • Floor
  • Rental
Floor load capacity and interactive sensing require project-specific engineering confirmation.
REQUEST A QUOTE ↗
Figures from the source specification: Cabinet Size · Weight · Pixel Pitch · Refresh Rate

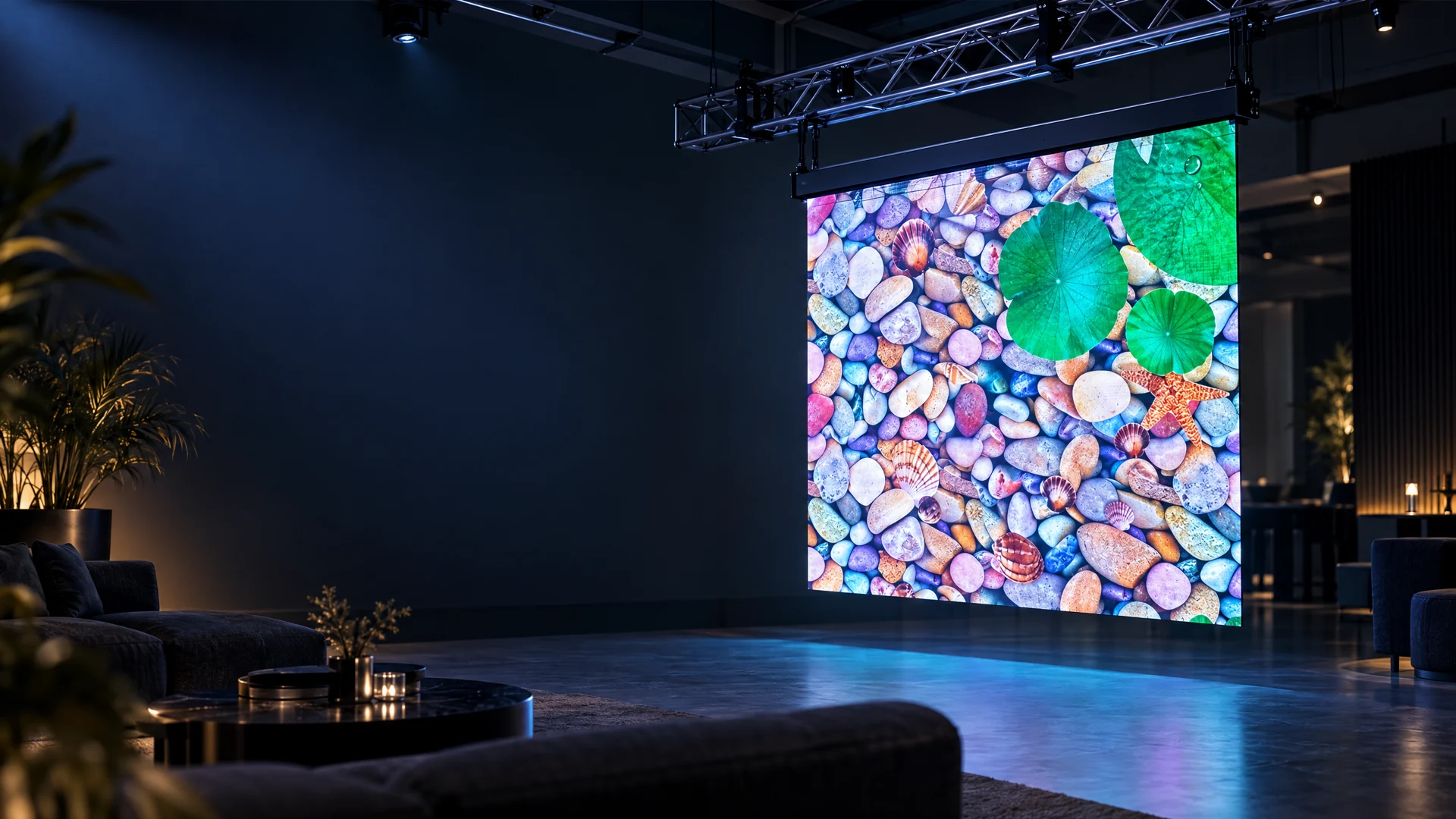

Rolling Display — application background visual

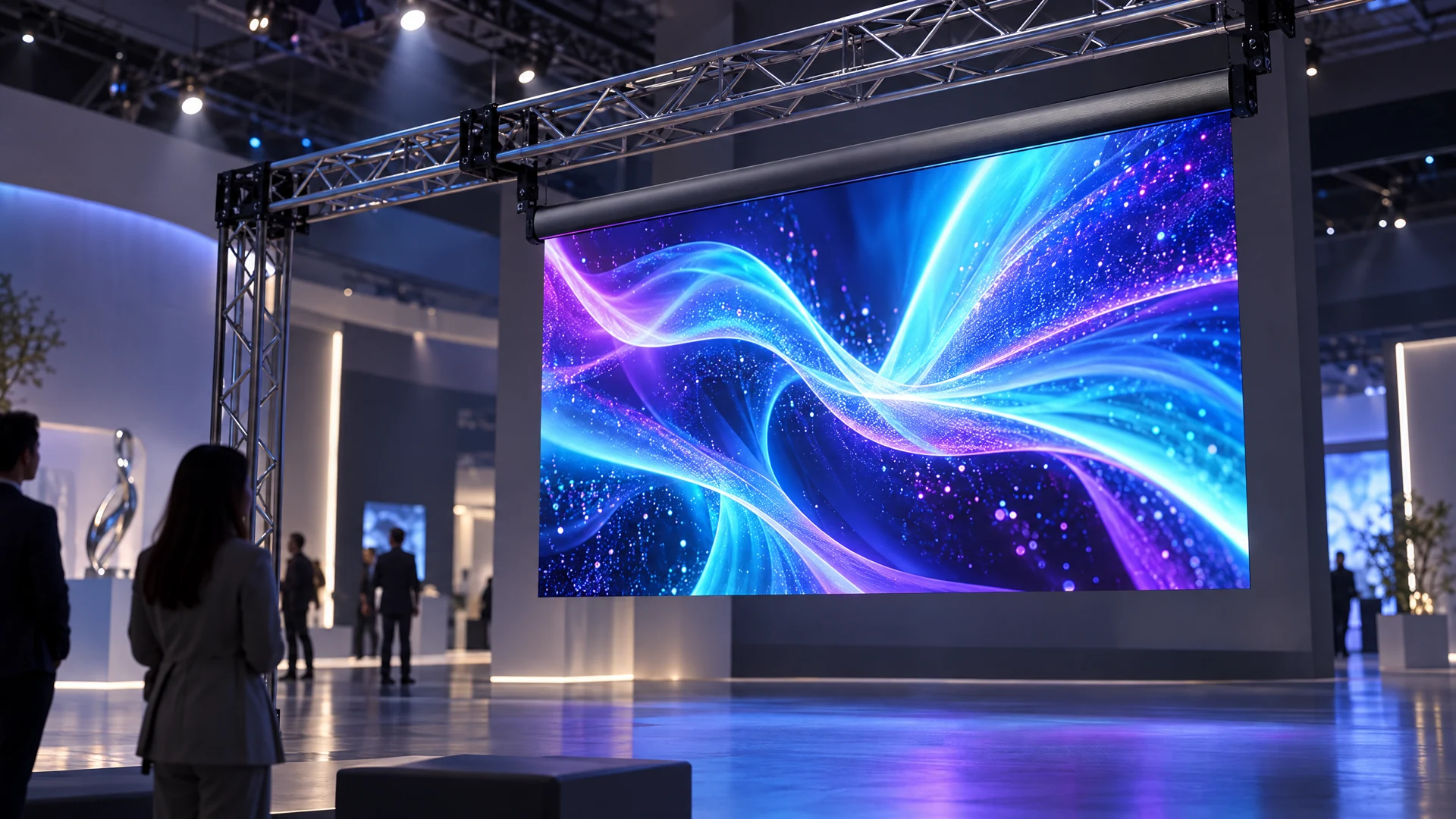

PRODUCT × ENVIRONMENT

Rollable exhibition display

A rollable display format suits exhibition spaces with wall, truss or floor mounting options.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Wall, truss and floor installation options. Optional interactive sensing.

Specifications are for reference. Final configuration is subject to project confirmation.

Load capacity and interactive sensing require application-specific engineering confirmation.

Discuss a project ↗

Technical specifications

CHOOSE A SOURCE CONFIGURATION (7)

CURRENT CONFIGURATION · P0.78

PIXEL PITCH
0.78
BRIGHTNESS
400cd
REFRESH
3840HZ
SIZE
500*62.5*17mm
Rolling Display — Technical specifications
Parameter P0.78
Pixel Pitch 0.78
Brightness 400cd
Viewing Distance 0.78m
LED Chip SMD0606
Pixel Density 1638400
Scan Mode 1/80
Module Resolution 640*80
Module Size 500*62.5*17mm
Refresh Rate 3840HZ
Viewing Angle 140° / 140°
Contrast Ratio 1500 : 1
Cabinet Size 500*1000*17mm
Operating Voltage AC 100-240V
Weight 18Kg/m²
Installation Method Fixed, Rental, Hanging
Environmental Rating IP65/IP41

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
