Transparent Holographic

Transparent glass-mounted display · 5 source configurations

Panel 1500 × 250 mm Source: Product Size

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. Film thickness and the bend are illustrative.

01 / PIXEL PITCH

2.5mm / 3.91mm …

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch NOW SHOWINGTransparent Holographic↗

TEXASSONIC / Creative & Transparent

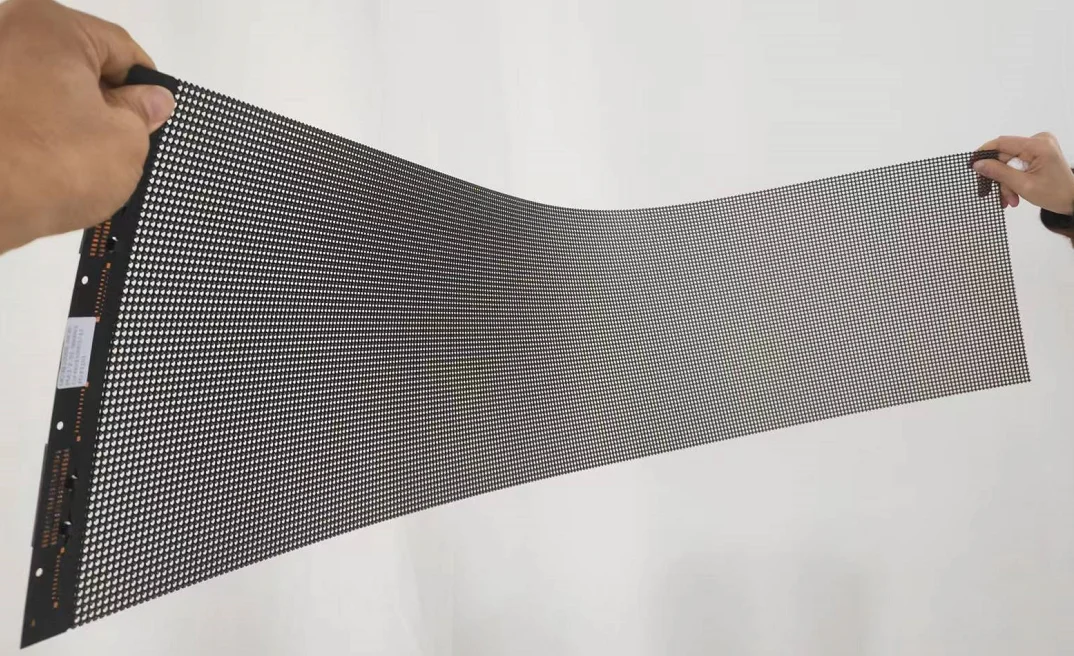

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Transparent Holographic

Transparent storefront content

Flexible transparent screen for glass, hanging and fixed installations.

Add digital content to glass storefronts while maintaining views into the interior.

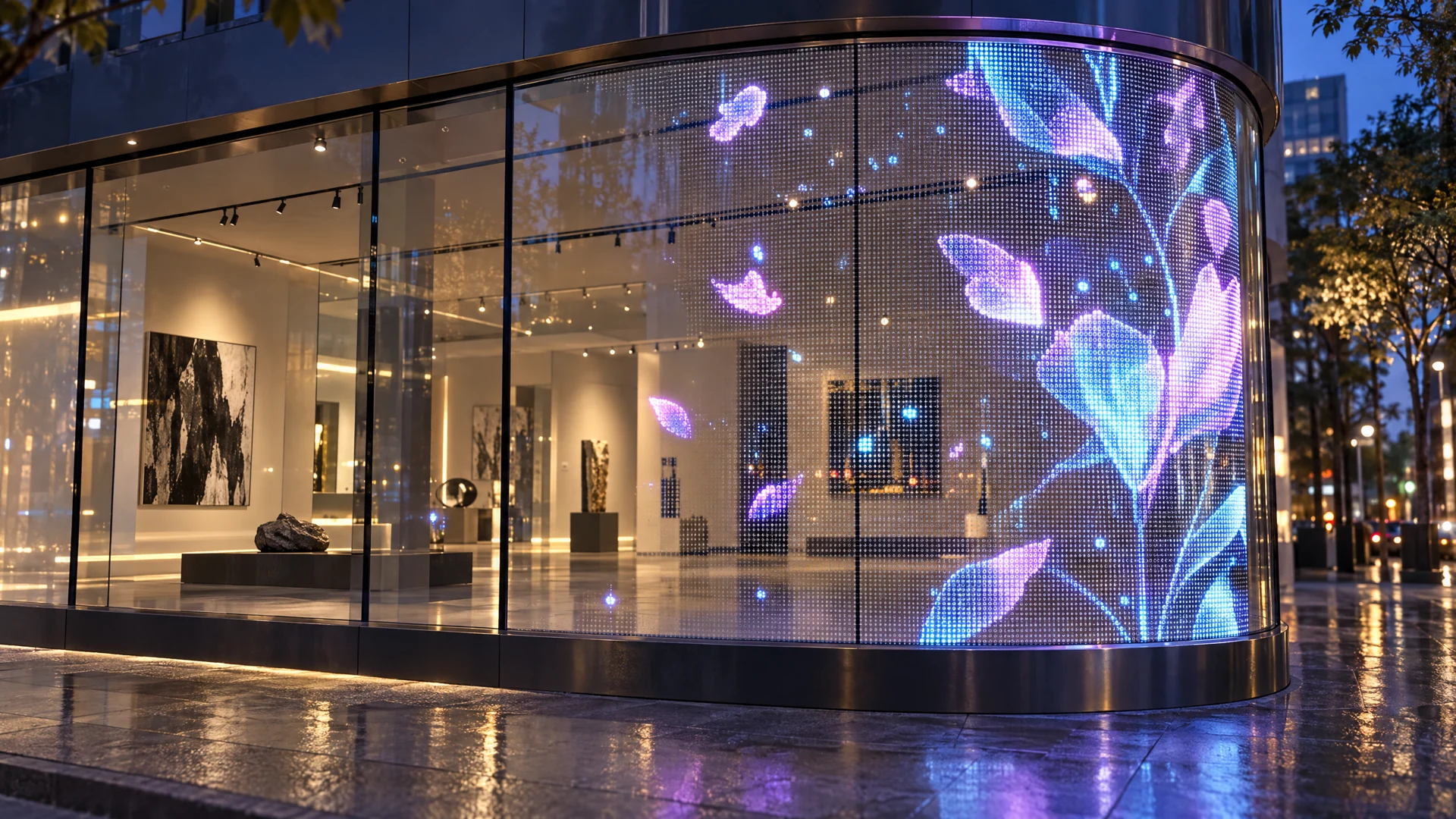

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

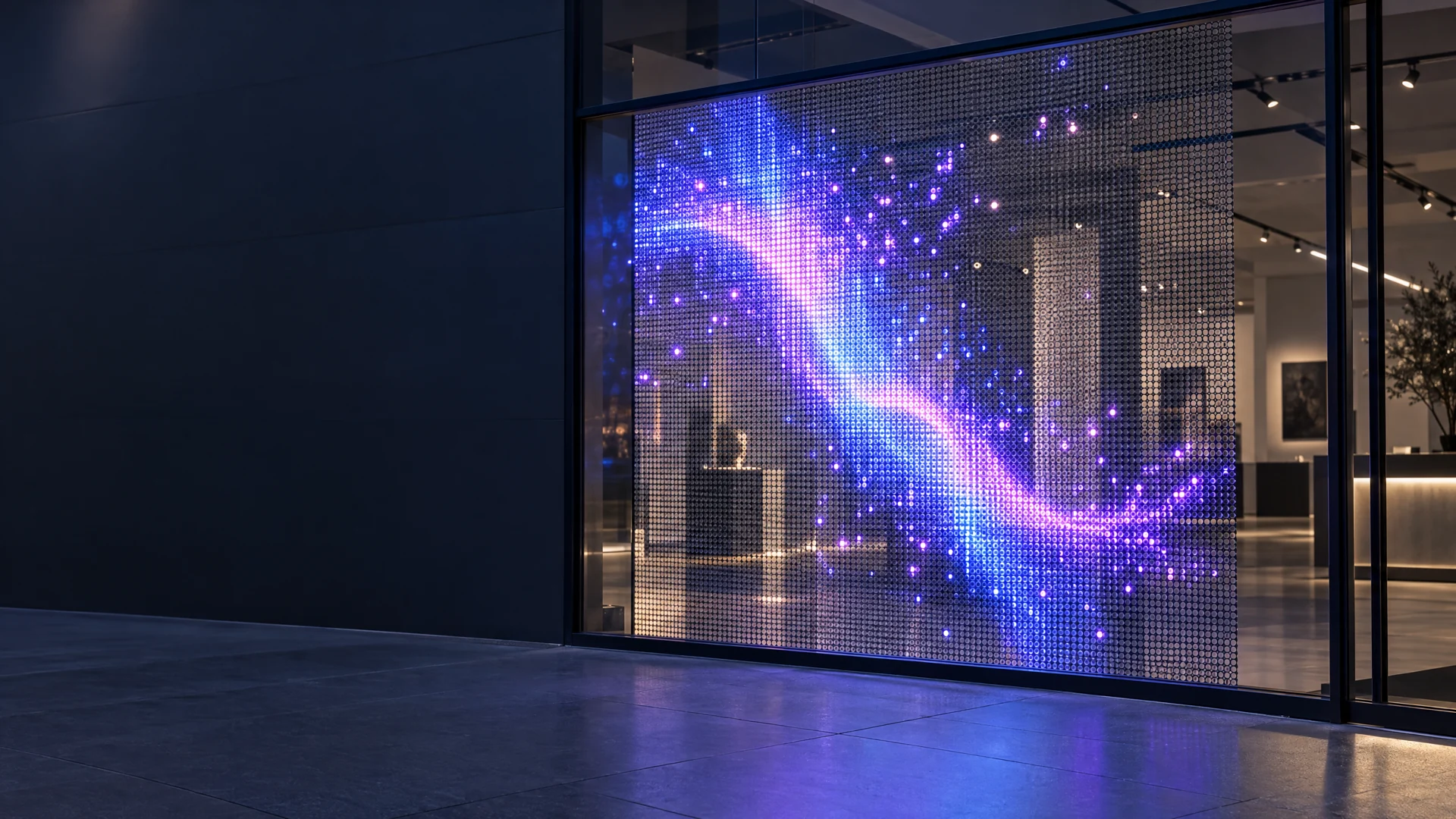

Transparent Holographic — application background visual

PRODUCT × ENVIRONMENT

Transparent storefront content

Add digital content to glass storefronts while maintaining views into the interior.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Flexible transparent screen for glass, hanging and fixed installations.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (5)

CURRENT CONFIGURATION · P2.5

PIXEL PITCH: 2.5mm
BRIGHTNESS: 800-2000
REFRESH: 3840 Hz
SIZE: 1500mm*250mm/1000mm*250mm

Configuration

Transparent Holographic — Technical specifications
Parameter	P2.5	P3.91	P6.25	P7.8	P10
Pixel Pitch	2.5mm	3.91mm	6.25mm	7.8mm	10mm
Pixel Density(dots/m²)	160000	65536	25600	16384	10000
LED chip	SMD1010	SMD2020	SMD2121	SMD2727	SMD2727
Product Size	1500mm250mm/1000mm250mm	1500mm250mm/1000mm250mm	1500mm250mm/1000mm250mm	1500mm*250mm	1500mm*250mm
Max Power(W/m²)	600	600	600	800	800
Avg Power(W/m²)	200	200	200	240	240
Screen Weight	3kg/m²	3kg/m²	3kg/m²	3kg/m²	3kg/m²
Power Supply Brand	YUANCHI	YUANCHI	YUANCHI	YUANCHI	YUANCHI
Screen Transparency	> 75%	> 75%	> 85%	> 88%	> 90%
IP Rating	IP45	IP45	IP45	IP45	IP45
Power Requirements	AC110V~220V	AC110V~220V	AC110V~220V	AC110V~220V	AC110V~220V
Brightness(cd/ ㎡ )	800-2000	800-4500	800-4500	1500-5000	1500-5000
Viewing Distance	3~200	4~200	7 ~200	8~200	10~200
Viewing Angle	Horizontal ≥160 ° , Vertical ≥140 °	Horizontal ≥160 ° , Vertical ≥140 °	Horizontal ≥160 ° , Vertical ≥140 °	Horizontal ≥160 ° , Vertical ≥140 °	Horizontal ≥160 ° , Vertical ≥140 °
Gray Level	16 bit	16 bit	16 bit	16 bit	16 bit
Color Temperature	5500K- 15000K (adjustable)	5500K- 15000K (adjustable)	5500K- 15000K (adjustable)	5500K- 15000K (adjustable)	5500K- 15000K (adjustable)
Driving Method	Static	Static	Static	Static	Static
Refresh Rate	3840 Hz	3840 Hz	3840 Hz	3840 Hz	3840 Hz
Frame Rate	60Hz	60Hz	60Hz	60Hz	60Hz
Control System	Colorlight/ Novastar, synchronous/asynchronous	Colorlight/ Novastar, synchronous/asynchronous	Colorlight/ Novastar, synchronous/asynchronous	Colorlight/ Novastar, synchronous/asynchronous	Colorlight/ Novastar, synchronous/asynchronous
Operating Environment	Operating environment: - 10 ~ + 65 ℃/ 10 ~ 90 % RH	Operating environment: - 10 ~ + 65 ℃/ 10 ~ 90 % RH	Operating environment: - 10 ~ + 65 ℃/ 10 ~ 90 % RH	Operating environment: - 10 ~ + 65 ℃/ 10 ~ 90 % RH	Operating environment: - 10 ~ + 65 ℃/ 10 ~ 90 % RH
Installation Method	Adhering to glass , Hanging installation , fixed installation, Support arbitrary size cropping and bending	Adhering to glass , Hanging installation , fixed installation, Support arbitrary size cropping and bending	Adhering to glass , Hanging installation , fixed installation, Support arbitrary size cropping and bending	Adhering to glass , Hanging installation , fixed installation, Support arbitrary size cropping and bending	Adhering to glass , Hanging installation , fixed installation, Support arbitrary size cropping and bending

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
