Sheet-metal Floor

Indoor LED floor display · 6 source configurations

Tile 500 × 500 × 86 mm Source: Cabinet Size

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. The adjustable feet are illustrative.

01 / PIXEL PITCH

1.953mm / 2.5mm …

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch NOW SHOWINGSheet-metal Floor↗

TEXASSONIC / Rental & Stage

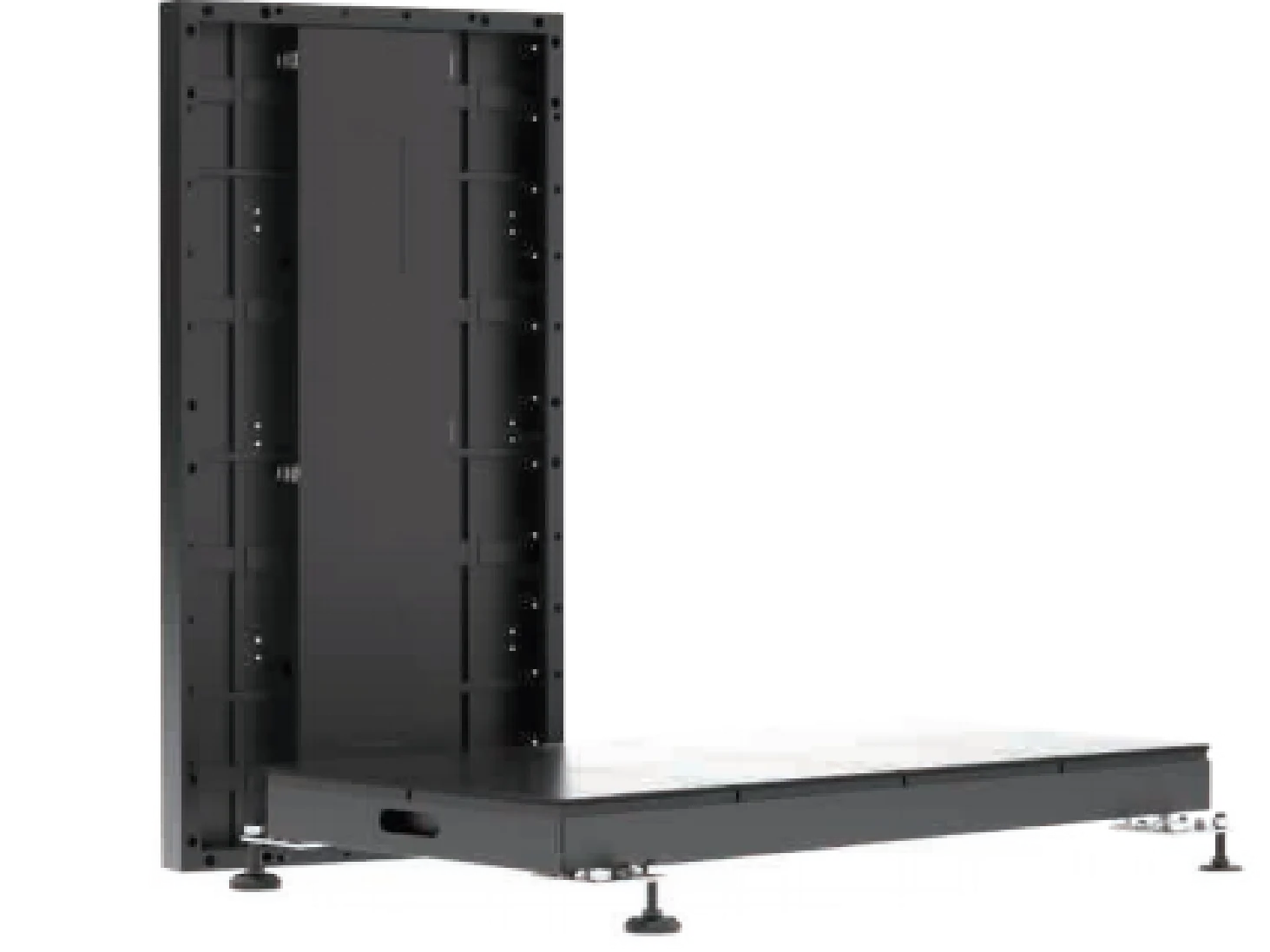

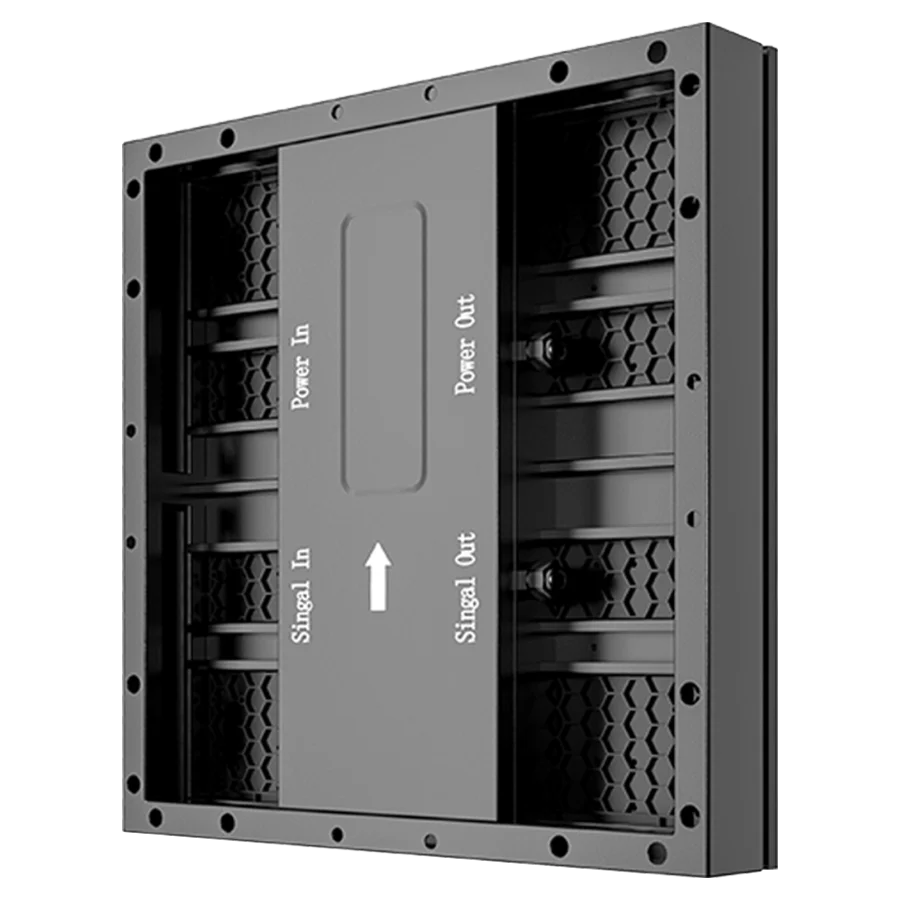

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Sheet-metal Floor

Immersive floor walkway

Indoor floor display with rear service access and optional sensing.

Indoor LED floor tiles turn walkways into display surfaces; sensing options depend on project configuration.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

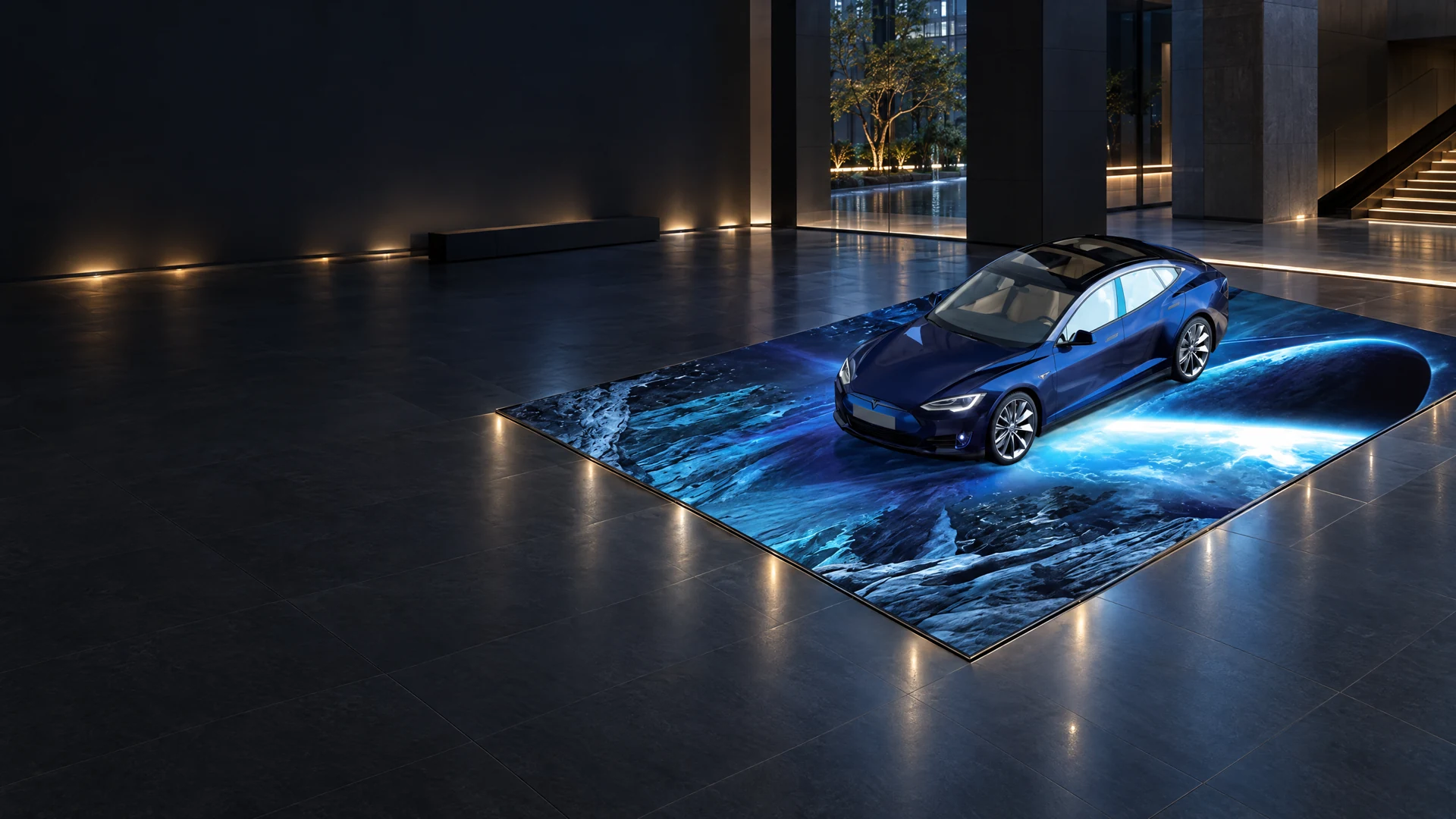

Sheet-metal Floor — application background visual

PRODUCT × ENVIRONMENT

Immersive floor walkway

Indoor LED floor tiles turn walkways into display surfaces; sensing options depend on project configuration.

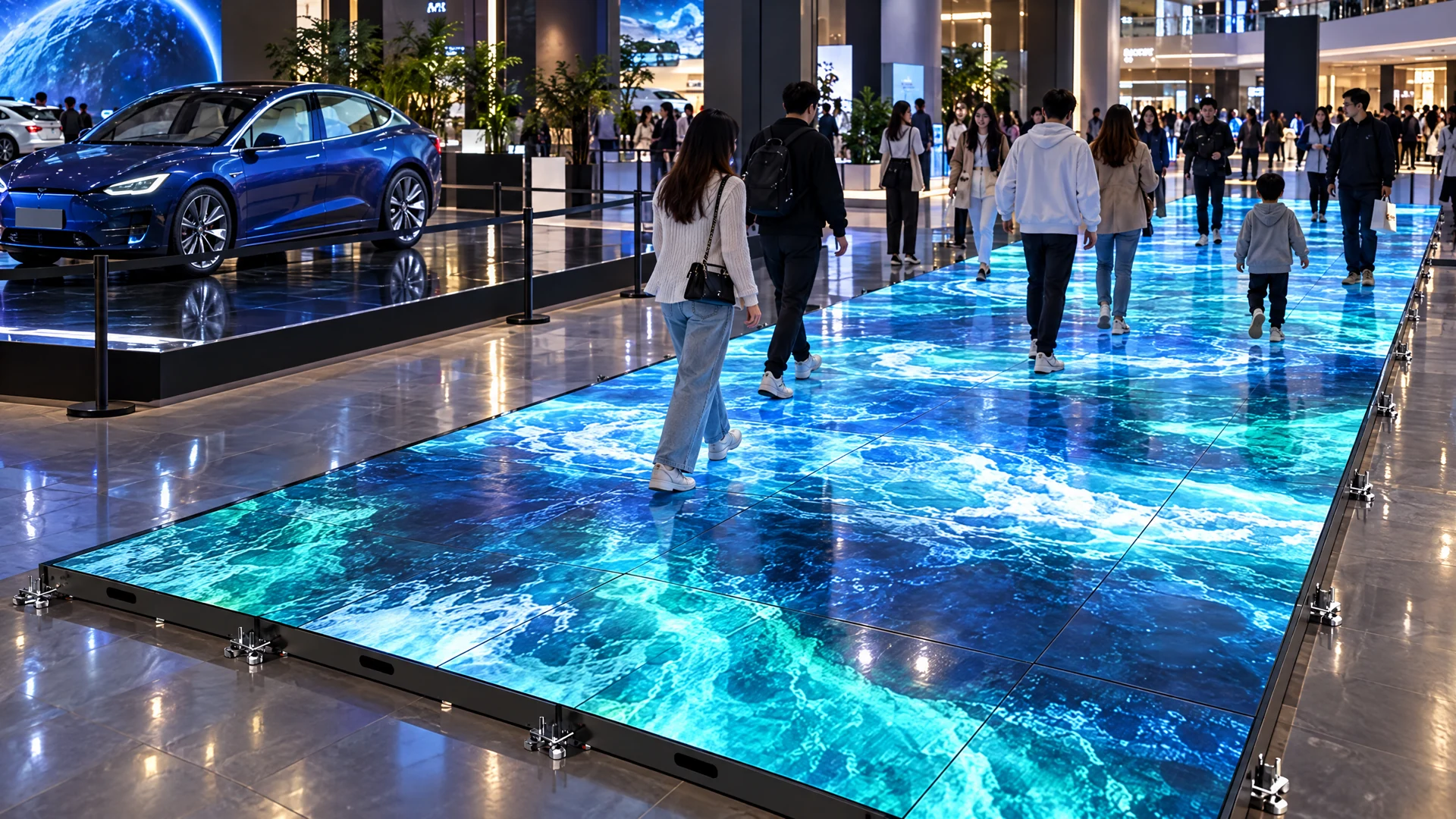

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Indoor floor display with rear service access and optional sensing.

Specifications are for reference. Final configuration is subject to project confirmation.

Lifetime statement in the source requires confirmation; not used as a performance promise.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (6)

CURRENT CONFIGURATION · P1.953

PIXEL PITCH: 1.953mm
BRIGHTNESS: 600cd/m²
REFRESH: ≥ 3840Hz
SIZE: 250×250mm

Configuration

Sheet-metal Floor — Technical specifications
Parameter	P1.953	P2.5	P2.604	P2.976	P3.91	P4.81
Pixel Pitch	1.953mm	2.5mm	2.604mm	2.976mm	3.91mm	4.81mm
LED Package	SMD1515	SMD1515	SMD1515	SMD2020	SMD2020	SMD2020
Density (dots/m²)	262144	160000	147456	112896	65536	43232
Module Size	250×250mm	250×250mm	250×250mm	250×250mm	250×250mm	250×250mm
Module Resolution	128×128	100×100	96×96	84×84	64×64	52×52
Module Thickness	16mm	16mm	16mm	16mm	16mm	16mm
Module Weight	0.8kg	0.8kg	0.8kg	0.8kg	0.8kg	0.8kg
Scan Mode	1/32S	1/25S	1/32S	1/28S	1/16S	1/13S
Cabinet Size	500×500×86mm / 500×1000×86mm	500×500×86mm / 500×1000×86mm	500×500×86mm / 500×1000×86mm	500×500×86mm / 500×1000×86mm	500×500×86mm / 500×1000×86mm	500×500×86mm / 500×1000×86mm
Cabinet Material	Sheet Metal	Sheet Metal	Sheet Metal	Sheet Metal	Sheet Metal	Sheet Metal
Cabinet Weight	11~12kg (500×500) / 22~24kg (500×1000)	11~12kg (500×500) / 22~24kg (500×1000)	11~12kg (500×500) / 22~24kg (500×1000)	11~12kg (500×500) / 22~24kg (500×1000)	11~12kg (500×500) / 22~24kg (500×1000)	11~12kg (500×500) / 22~24kg (500×1000)
Cabinet Resolution	256×256	200×200	192×192	168×168	128×128	104×104
Load Capacity	≥ 1.5 ton/m²	≥ 1.5 ton/m²	≥ 1.5 ton/m²	≥ 1.5 ton/m²	≥ 1.5 ton/m²	≥ 1.5 ton/m²
Recommended Viewing	2-30m	3-50m	3-50m	3-50m	4-50m	5-60m
Frame Rate	60Hz	60Hz	60Hz	60Hz	60Hz	60Hz
Refresh Rate	≥ 3840Hz	≥ 3840Hz	≥ 3840Hz	≥ 3840Hz	≥ 3840Hz	≥ 3840Hz
Pixel Configuration	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B	1R1G1B
Brightness	600cd/m²	800cd/m²	800cd/m²	900cd/m²	900cd/m²	1000cd/m²
Avg Power	260W/m²	260W/m²	260W/m²	260W/m²	260W/m²	260W/m²
Max Power	800W/m²	800W/m²	800W/m²	800W/m²	800W/m²	800W/m²
IP Rating	IP54 (indoor use only)	IP54 (indoor use only)	IP54 (indoor use only)	IP54 (indoor use only)	IP54 (indoor use only)	IP54 (indoor use only)
Operating Temperature	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃	-20 ~ +50℃
Maintenance	Rear maintenance	Rear maintenance	Rear maintenance	Rear maintenance	Rear maintenance	Rear maintenance
Viewing Angle	H:140° V:140°	H:140° V:140°	H:140° V:140°	H:140° V:140°	H:140° V:140°	H:140° V:140°
Working Voltage	AC 110V-220V	AC 110V-220V	AC 110V-220V	AC 110V-220V	AC 110V-220V	AC 110V-220V

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
