Reception Display

LED reception counter display · 6 source configurations

Display 1920 × 960 mm (W×H) Source: Display Size (WxH)

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. Counter depth, top and base are illustrative.

01 / BRIGHTNESS

600 cd/m²

Brightness decides how the picture holds up against ambient light — indoor, outdoor, day and night all ask for different levels.

Source field: Brightness (cd/m²) NOW SHOWINGReception Display↗

TEXASSONIC / Indoor & Commercial

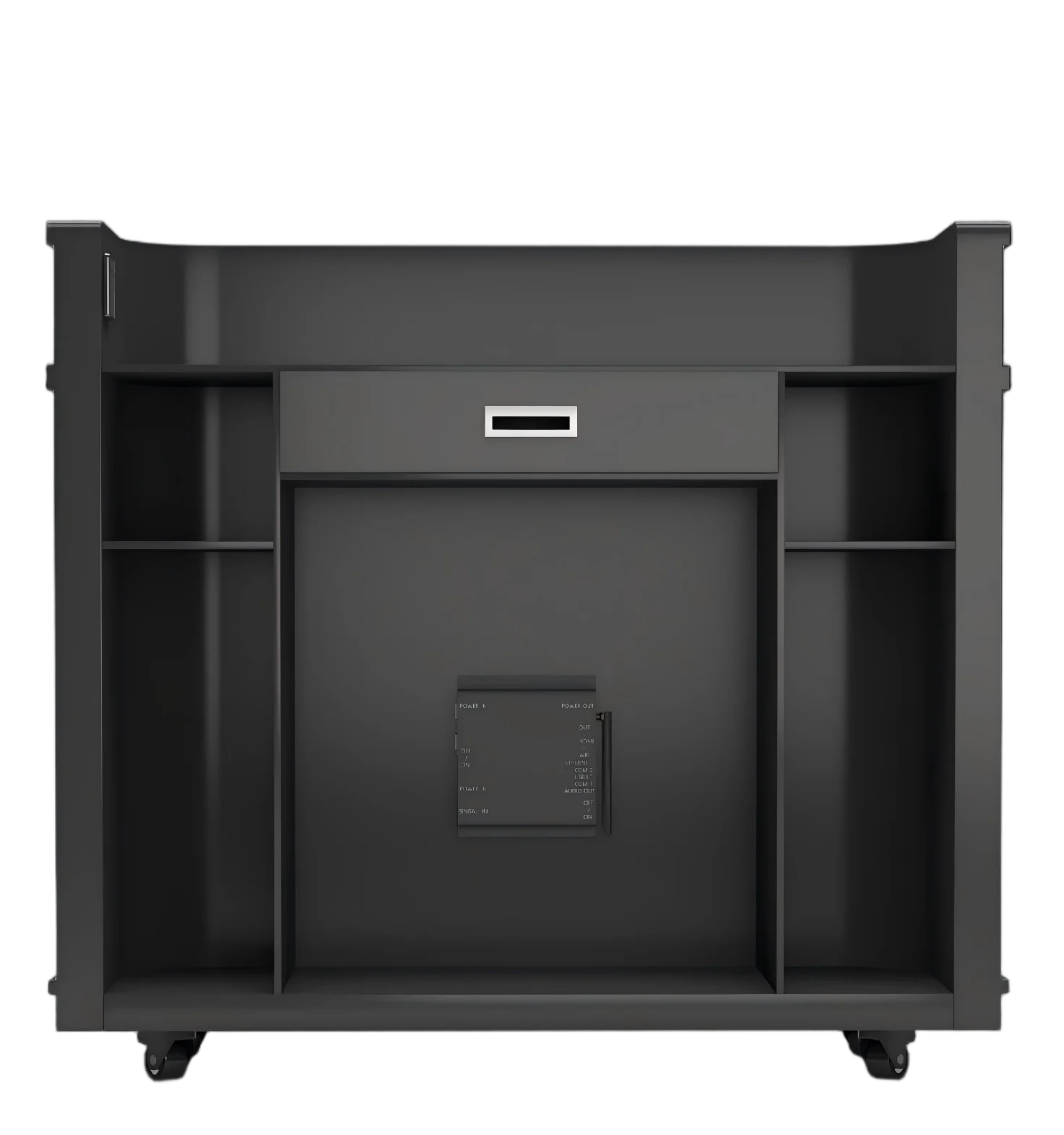

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Reception Display

Brand welcome and reception

Front-maintenance LED counter with magnetic installation.

An LED reception counter turns the welcome area into an adaptable brand presentation.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

Reception Display — application background visual

PRODUCT × ENVIRONMENT

Brand welcome and reception

An LED reception counter turns the welcome area into an adaptable brand presentation.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Front-maintenance LED counter with magnetic installation.

Specifications are for reference. Final configuration is subject to project confirmation.

Some overall size and resolution entries in the source are inconsistent; confirm the final counter configuration.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (6)

CURRENT CONFIGURATION · WR1-P2.5

BRIGHTNESS: 600
REFRESH: 3840Hz
SIZE: 320mmx160mm
PROTECTION: IP43 (front)

Configuration

Reception Display — Technical specifications
Parameter	WR1-P2.5	WR1-P1.86	WR2-P2.5	WR2-P1.86	WR3-P2.5	WR3-P1.86
Module Size	320mmx160mm	320mmx160mm	320mmx160mm	320mmx160mm	320mmx160mm	320mmx160mm
LED lamp beads	SMD2020	SMD1515	SMD2020	SMD1515	SMD1515	SMD1515
Module Pixels	128×64	172×86	128×64	172×86	128×64	172×86
Display Size (WxH)	1920×960mm	1920×960mm	2240×960mm	2240×960mm	2560×960mm	2560×960mm
Driving method	1/32	1/43	1/32	1/43	1/32	1/43
Brightness (cd/m²)	600	600	600	600	600	600
Refresh rate (Hz)	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Gray scale	12-16Bit	12-16Bit	12-16Bit	12-16Bit	12-16Bit	12-16Bit
Maintenance method	Front maintenance	Front maintenance	Front maintenance	Front maintenance	Front maintenance	Front maintenance
Protection level	IP43 (front)	IP43 (front)	IP43 (front)	IP43 (front)	IP43 (front)	IP43 (front)
Power(Max/Avg)	1200W/450W	1200W/450W	1400W/500W	1400W/500W	1600W/550W	1600W/550W
Input voltage	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V	AC100-240V
Operating temperature & humidity	-20~60°C/10%~90%	-20~60°C/10%~90%	-20~60°C/10%~90%	-20~60°C/10%~90%	-20~60°C/10%~90%	-20~60°C/10%~90%

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
