Spherical Display

Custom-shaped spherical LED display · 10 source configurations

Diameter 1 m (1–3 m available) Source: model name

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry. The floor stand is illustrative.

01 / BRIGHTNESS

600 cd/m²

Brightness decides how the picture holds up against ambient light — indoor, outdoor, day and night all ask for different levels.

Source field: Brightness (cd/m²) NOW SHOWINGSpherical Display↗

TEXASSONIC / Creative & Transparent

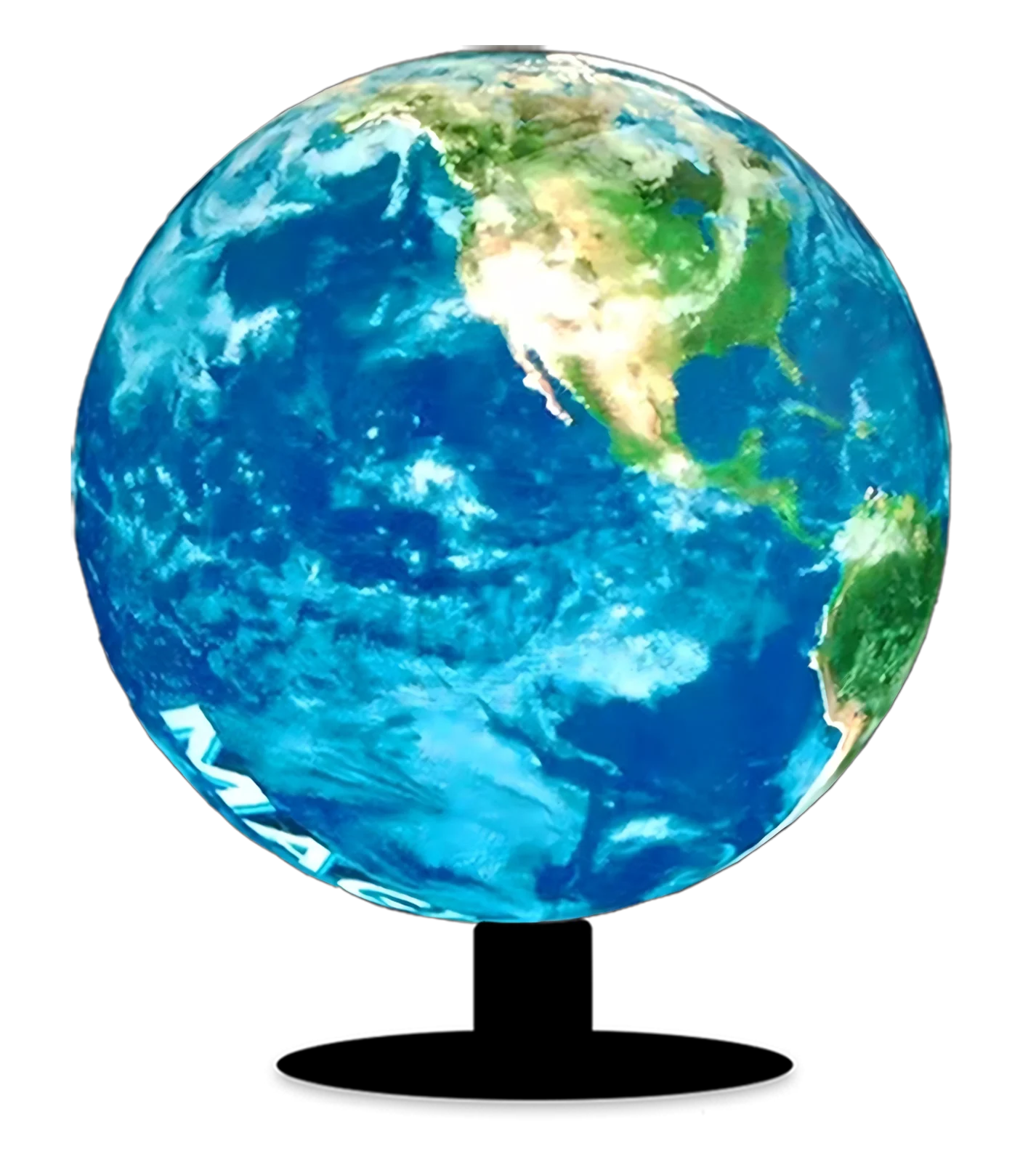

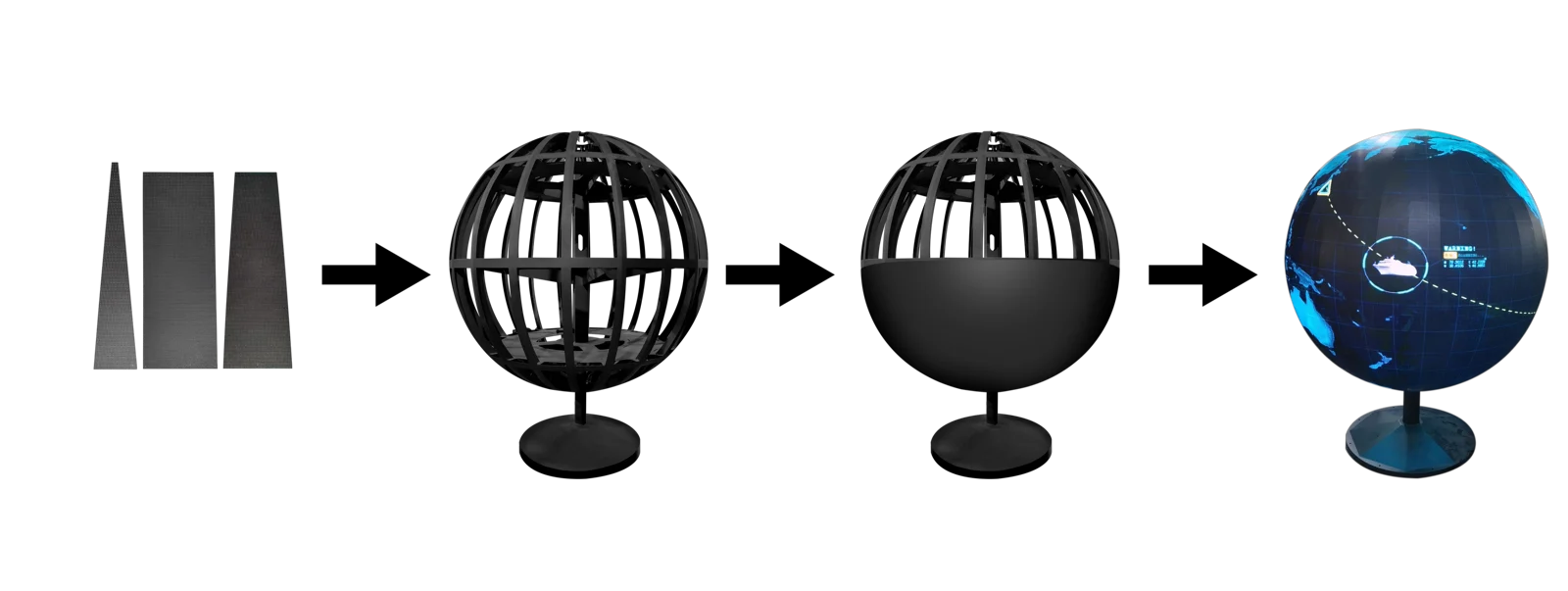

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

Spherical Display

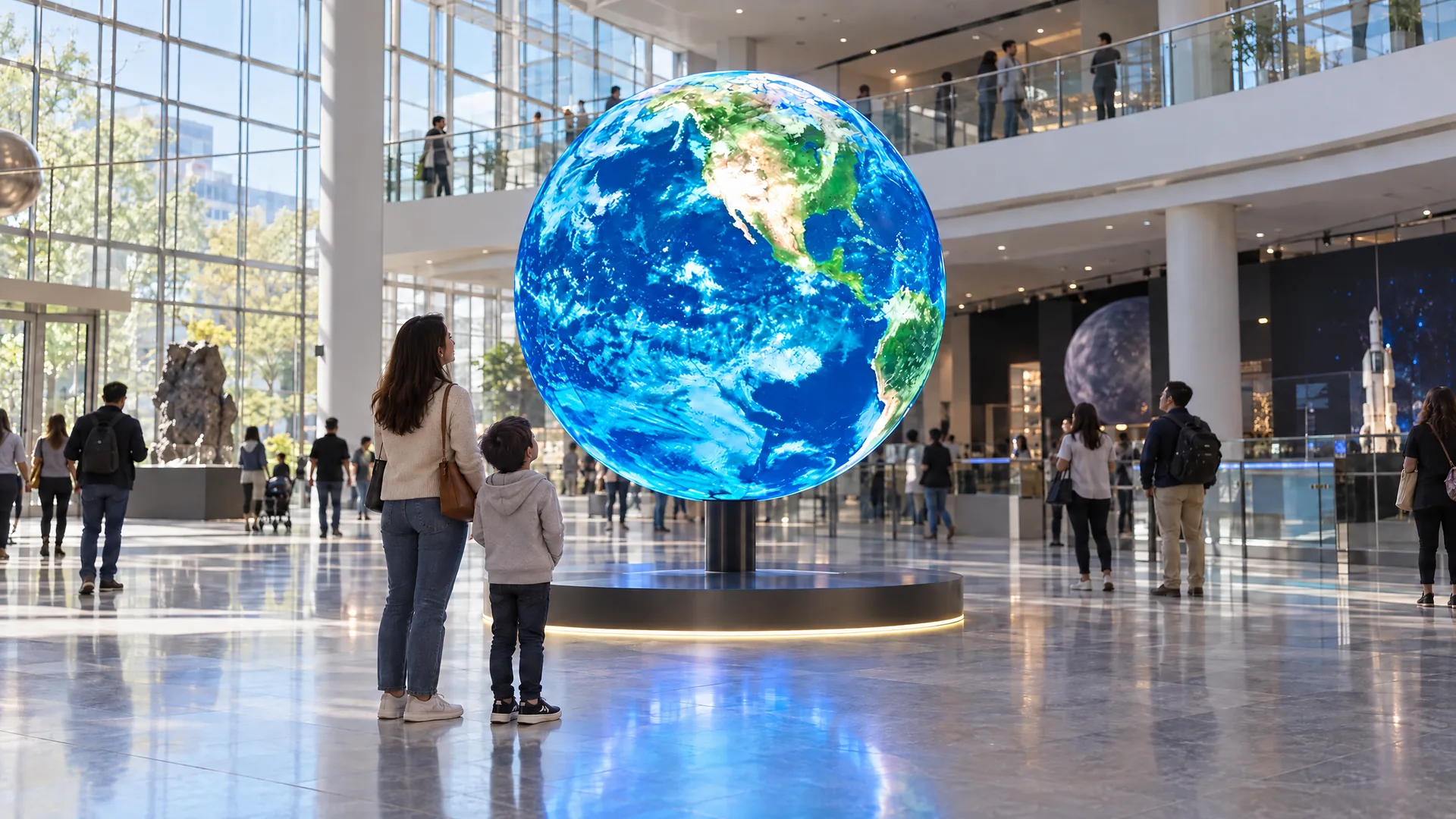

Spherical immersive installation

Spherical formats with floor-standing, hanging or fixed installation.

A spherical display creates a spatial focal point with freestanding, suspended or fixed mounting options.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 03

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

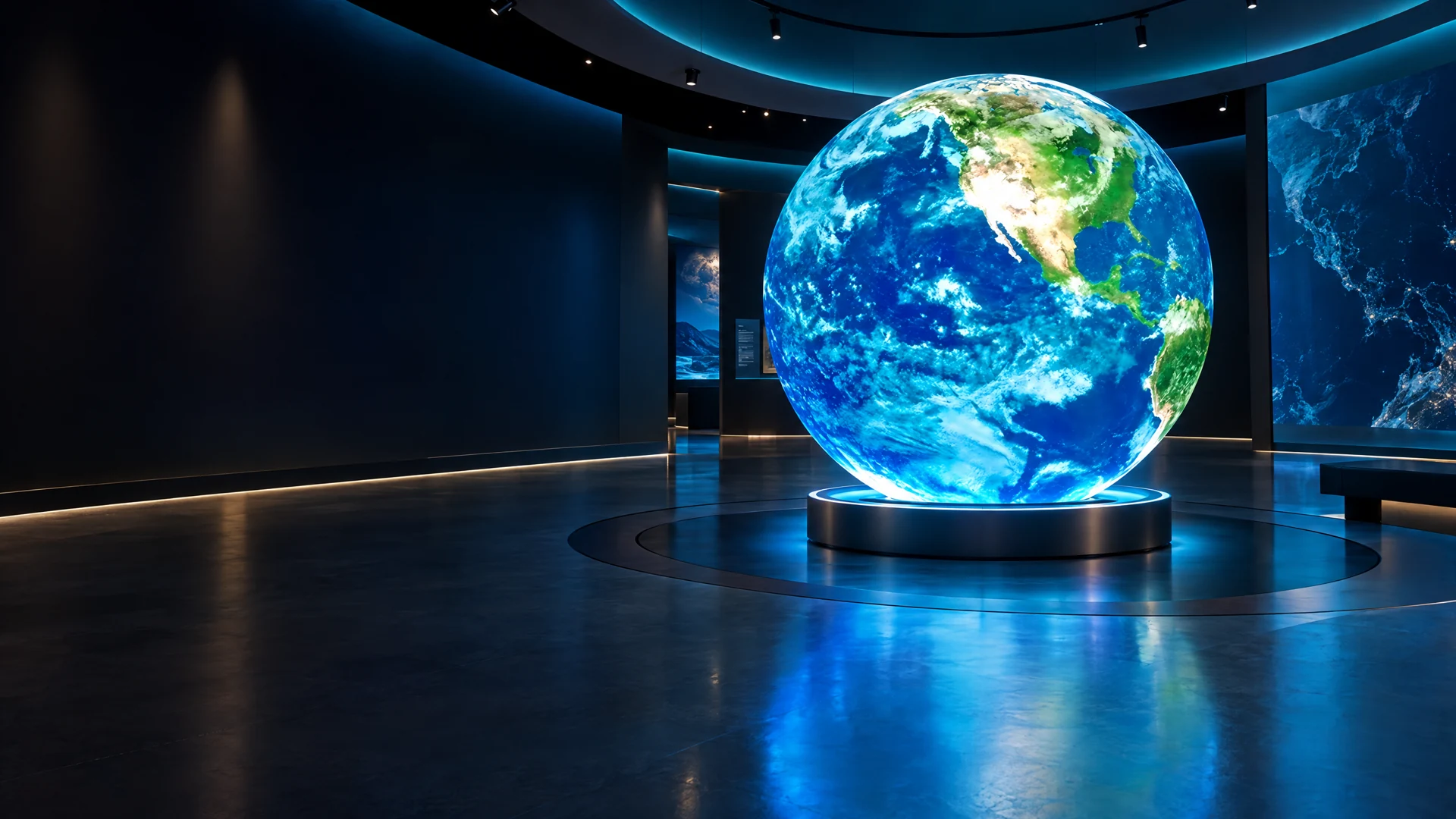

Spherical Display — application background visual

PRODUCT × ENVIRONMENT

Spherical immersive installation

A spherical display creates a spatial focal point with freestanding, suspended or fixed mounting options.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

Spherical formats with floor-standing, hanging or fixed installation.

Specifications are for reference. Final configuration is subject to project confirmation.

Diameter, custom structure and power requirements must be confirmed for each project.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (10)

CURRENT CONFIGURATION · P2.5 · 1 m

BRIGHTNESS: 600
REFRESH: 3840Hz
PROTECTION: IP45

Configuration

Spherical Display — Technical specifications
Parameter	P2.5 · 1 m	P2.5 · 1.5 m	P2.5 · 2 m	P2.5 · 2.5 m	P2.5 · 3 m	P1.8 · 1 m	P1.8 · 1.5 m	P1.8 · 2 m	P1.8 · 2.5 m	P1.8 · 3 m
Pixel Density (dots/m²)	160,000	160,000	160,000	160,000	160,000	289,050	289,050	289,050	289,050	289,050
Driving Method	1/40	1/40	1/40	1/40	1/40	1/49	1/49	1/49	1/49	1/49
Brightness (cd/m²)	600	600	600	600	600	600	600	600	600	600
Refresh Rate (Hz)	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz	3840Hz
Protection Rating	IP45	IP45	IP45	IP45	IP45	IP45	IP45	IP45	IP45	IP45
Brightness Adjustment	256 Levels	256 Levels	256 Levels	256 Levels	256 Levels	256 Levels	256 Levels	256 Levels	256 Levels	256 Levels
Viewing Angle (H/V)	Full Viewing Angle	Full Viewing Angle	Full Viewing Angle	Full Viewing Angle	Full Viewing Angle	Full Viewing Angle	Full Viewing Angle	Full Viewing Angle	Full Viewing Angle	Full Viewing Angle
Best Viewing Distance	1m-10m	1.5m-10m	2m-10m	2.5m-10m	3m-10m	1m-10m	1.5m-10m	2m-10m	2.5m-10m	3m-10m
GOB Process (Optional)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)	Optional: GOB process available (anti-collision, anti-scratch, splash-proof, dust-proof, etc.)
Installation Method	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed	Floor-standing, Hanging, Fixed
Maintenance Method	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance	Front Maintenance
Operating Temp/Humidity	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%	-20~60℃ / 10%~85%

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
