WH Series

Outdoor energy-saving LED display · 6 source configurations

Cabinet 1000 × 1000 × 85 mm Source: Cabinet Size (mm)

Enquire about this display ↗ PRODUCT PHOTOS ↓

DRAG TO ORBIT · CTRL + SCROLL OR +/− TO ZOOM · HOVER TO SPIN FASTER DRAG WITH ONE FINGER TO ORBIT · TAP +/− TO ZOOM

Modelled to the specification dimensions, with rear details from the product photos. The ultra-HD screen picture is sample content, not customer footage; internal structure is not engineering geometry.

01 / PIXEL PITCH

2.976–10.42 mm

The smaller the pitch, the finer the image at close range. Choose it from your nearest viewing distance and the resolution you need.

Source field: Pixel Pitch (mm) NOW SHOWINGWH Series↗

TEXASSONIC / Outdoor & Fixed

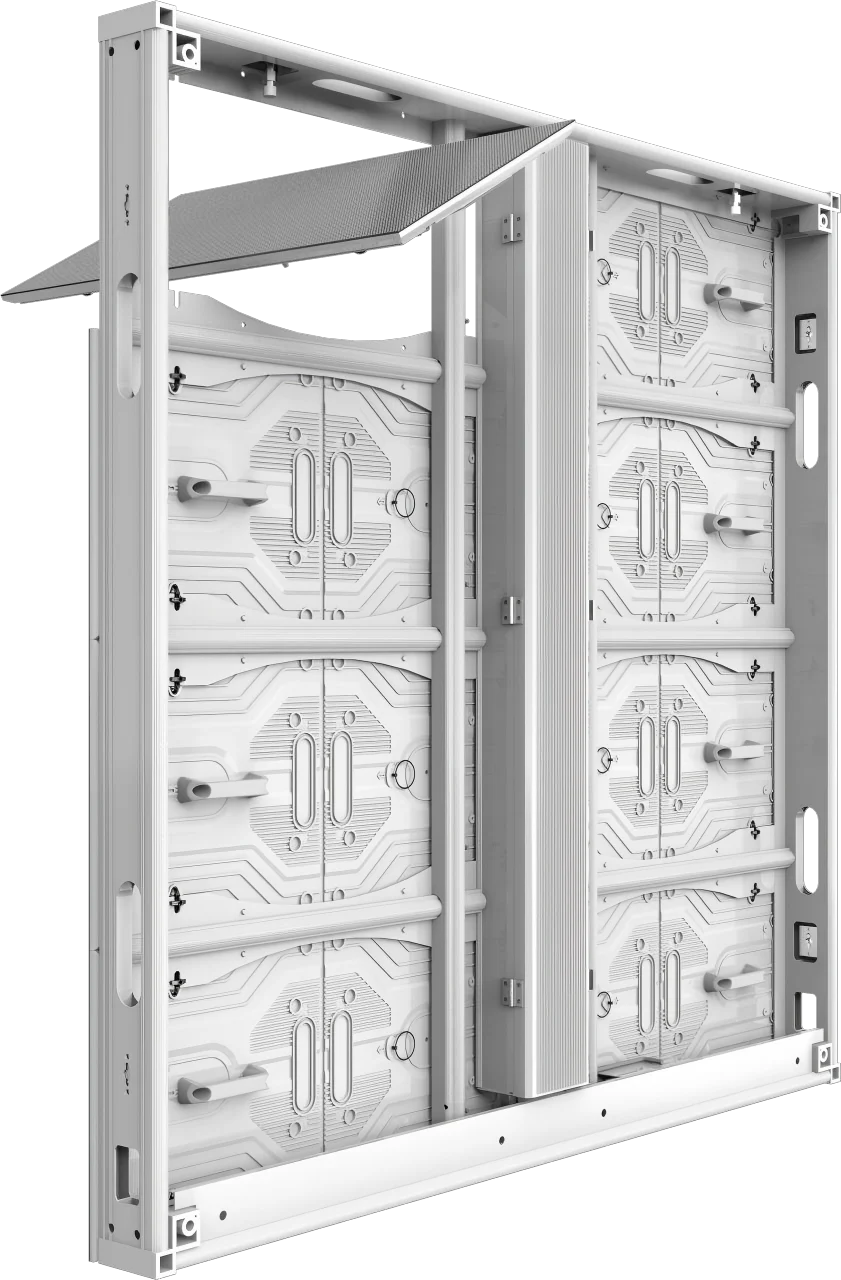

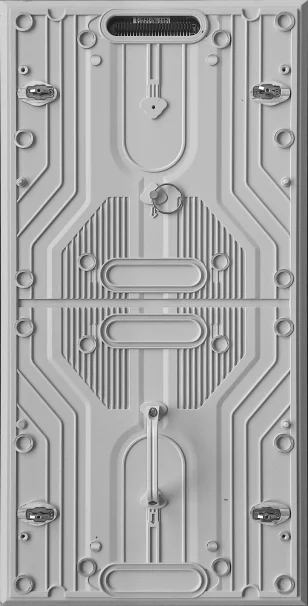

Product photos

Photos of the real product — zoom in for detail.

Enquire about this display↗

PRODUCT PHOTO

PRODUCT × SPACE

WH Series

Outdoor architectural brand wall

IP66 protection. Front and rear service access.

An outdoor rectangular display integrates with architecture, with brightness, sizing and access configured per project.

APPLICATION CONCEPT — NOT A COMPLETED CLIENT PROJECT · NOT A 360° MODEL

01 / 04

SWITCH VIEWS · CHOOSE A FRAME · EXPLORE THE DETAIL

WH Series — application background visual

PRODUCT × ENVIRONMENT

Outdoor architectural brand wall

An outdoor rectangular display integrates with architecture, with brightness, sizing and access configured per project.

PLAN YOUR INSTALLATION ↗ APPLICATION VISUAL — NOT A COMPLETED TEXASSONIC CLIENT PROJECT

At a glance

Configure it for your space.

IP66 protection. Front and rear service access.

Specifications are for reference. Final configuration is subject to project confirmation.

Discuss a project ↗

CHOOSE A SOURCE CONFIGURATION (6)

CURRENT CONFIGURATION · P2.976

PIXEL PITCH: 2.976
BRIGHTNESS: ≥ 5000
REFRESH: 3840
SIZE: 500×250

Configuration

WH Series — Technical specifications
Parameter	P2.976	P3.91	P4.81	P6.25	P7.81	P10.42
Pixel Structure (SMD)	1415	1415	1921	2727	2727	2727
Pixel Pitch (mm)	2.976	3.91	4.81	6.25	7.81	10.42
Module Resolution	168×84	128×64	104×52	80×40	64×32	48×24
Module Size (mm)	500×250	500×250	500×250	500×250	500×250	500×250
Module Weight (kg)	1.93	1.93	1.93	1.93	1.93	1.93
Cabinet Resolution	336×336	256×256	208×208	160×160	128×128	96×96
Cabinet Size (mm)	1000×1000×85	1000×1000×85	1000×1000×85	1000×1000×85	1000×1000×85	1000×1000×85
Cabinet Weight (kg)	25	25	25	25	25	25
Cabinet Material	Extruded Aluminum	Extruded Aluminum	Extruded Aluminum	Extruded Aluminum	Extruded Aluminum	Extruded Aluminum
Pixel Density (dots/m²)	112,896	65,536	43,264	25,600	16,384	9,216
IP Rating	IP66	IP66	IP66	IP66	IP66	IP66
Brightness (nits)	≥ 5000	≥ 5500	≥ 6000	≥ 6500	≥ 6500	≥ 6500
Gray Scale (bit)	14–16	14–16	14–16	14–16	14–16	14–16
Color Temperature (K)	6500–9000 Adjustable	6500–9000 Adjustable	6500–9000 Adjustable	6500–9000 Adjustable	6500–9000 Adjustable	6500–9000 Adjustable
Viewing Angle (H×V)	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°	140° / 140°
Contrast Ratio	8000:1	8000:1	8000:1	8000:1	8000:1	8000:1
Max Power (W/m²)	≤ 550	≤ 550	≤ 550	≤ 550	≤ 550	≤ 550
Avg Power (W/m²)	≤ 186	≤ 186	≤ 186	≤ 186	≤ 186	≤ 186
Power Supply	AC100–240V	AC100–240V	AC100–240V	AC100–240V	AC100–240V	AC100–240V
Frame Rate (Hz)	50 & 60	50 & 60	50 & 60	50 & 60	50 & 60	50 & 60
Scan Number (S)	1/21	1/8	1/7	1/5	1/4	1/2
Refresh Rate (Hz)	3840	3840	3840	3840	3840	3840
Maintenance	Front / Rear	Front / Rear	Front / Rear	Front / Rear	Front / Rear	Front / Rear
Operating Temp / Humidity	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)	-30°C ~ 60°C / 10%RH ~ 98%RH (Non-condensing)

Values describe the standard configuration, not a guarantee for every installation. Final specifications are confirmed with the project quotation and engineering design.
